Parking Brake System: Adjustments
LOCK OUTNOTE: The parking brake is self-adjusting, it can not be adjusted. 1.
Remove the center floor console
Floor Console Base Tray - Removal.
2.

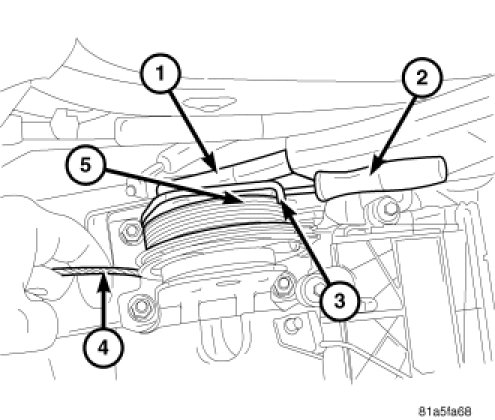

Pull up on the spring until the tab on the lever passes the tab on the cable guide (3) and install a punch (2) in the hole on the side (5) then release.
3.
The park brake system is now locked out to perform necessary repairs.
