Installation

INSTALLATION

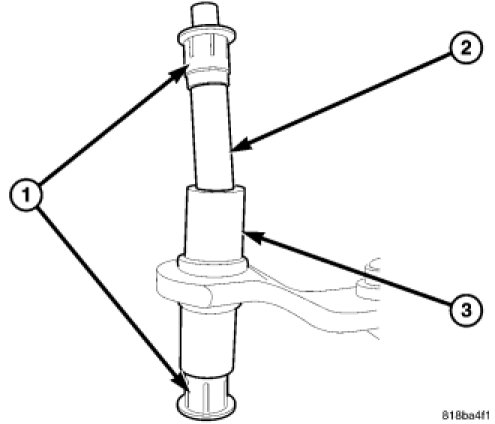

1. Lubricate the brake pedal pin and bushings with Mopar multi-mileage grease.
2. Install the pedal bushings if removed.




3. Install the pedal into the vehicle.
4. Install the nuts securing the pedal to the column bracket.
5. Tighten the nuts to 22.6 Nm (200 in. lbs.).
6. Install the booster push rod on the pedal pin and install a new retainer clip (3).
7. Install the brake lamp switch, Installation.
8. Install the knee blocker, Steering Column Opening Cover - Installation.
