Alternator




Component ID: 115
Component : GENERATOR

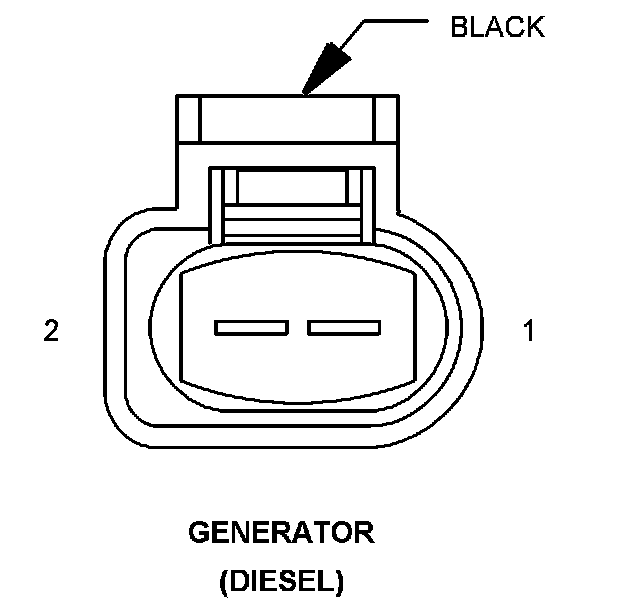

Connector:
Name : GENERATOR
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Circuit Description
1 G329 20VT/OR CHARGE INDICATOR SIGNAL
2 K92 20BR/YL GEN OUTPUT SIGNAL

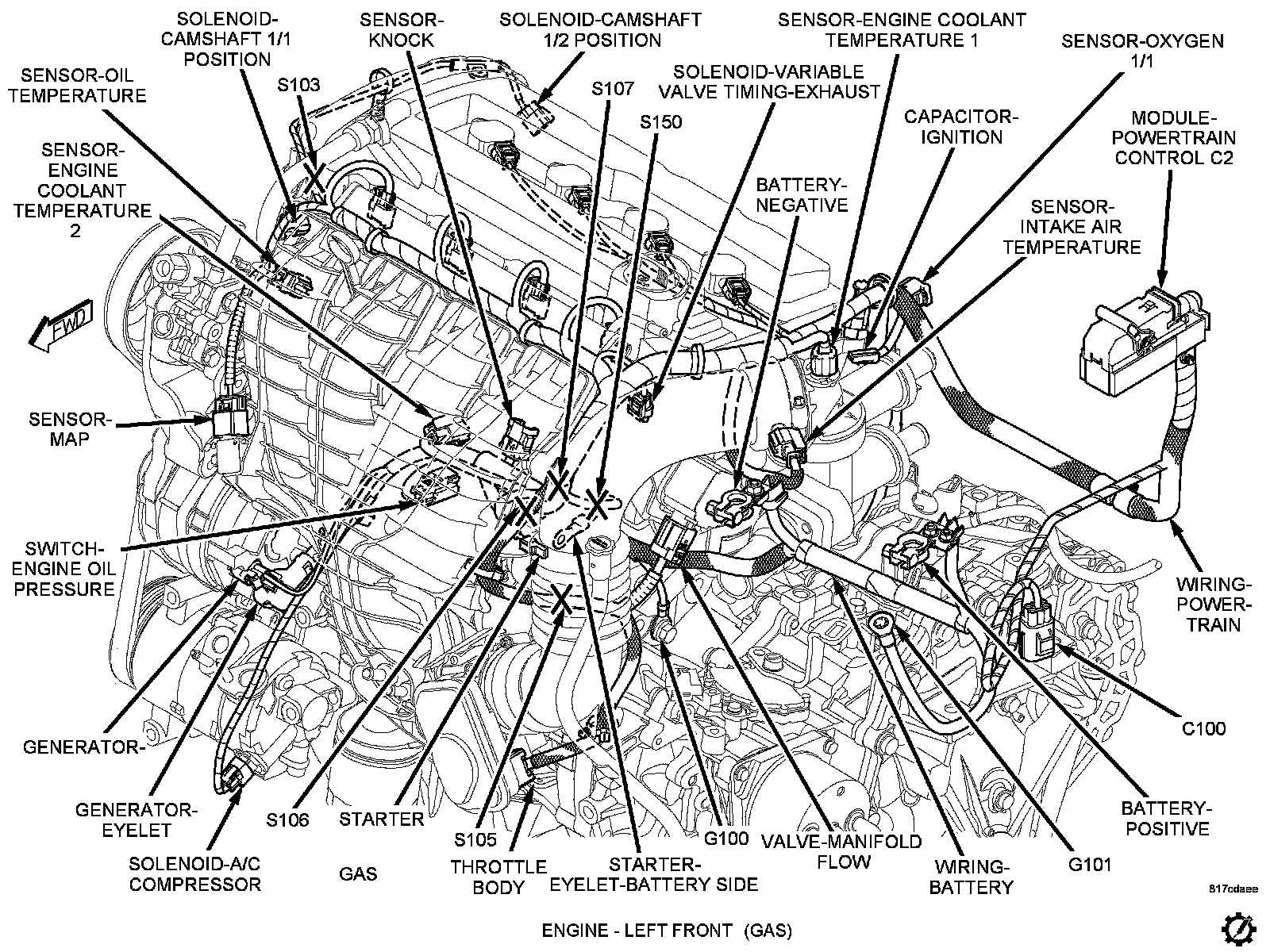

Component Location - 14




Component Location - 18

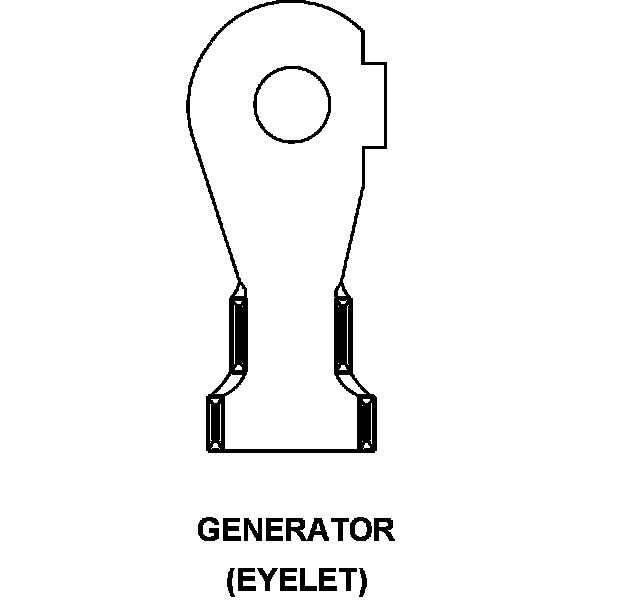

Connector:
Name : GENERATOR
Color :
# of pins : 1
Qualifier : (EYELET)




Pin Circuit Description
1 A801 4RD/GY B(+)
Pin Circuit Description
1 A801 6RD/GY B(+)

Component Location - 14




Component Location - 18

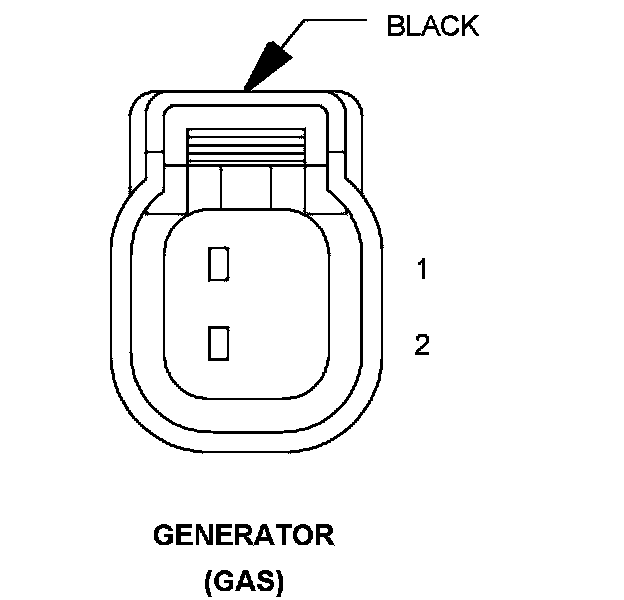

Connector:
Name : GENERATOR
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 K20 20BR/GY GEN FIELD CONTROL
2 A804 20RD/GY GEN SENSE

Component Location - 14




Component Location - 18
