Home >> Jeep >> 2009 >> Commander 2WD V6-3.7L >> Repair and Diagnosis >> Body and Frame >> Sound Proofing / Insulation >> Locations

Sound Proofing / Insulation: Locations

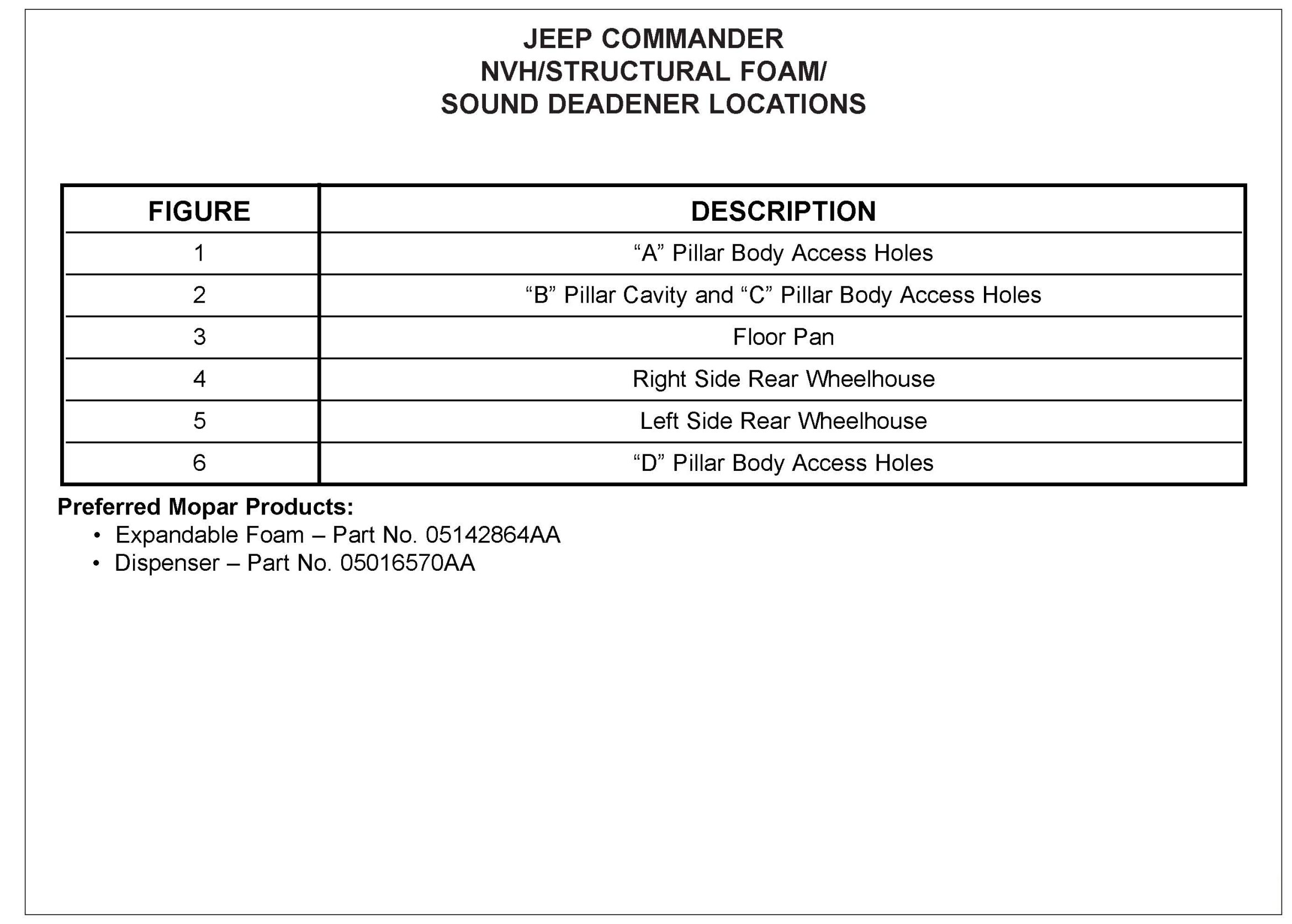

JEEP COMMANDER NVH/STRUCTURAL FOAM/SOUND DEADENER LOCATIONS
