Rear A/C-Heater Control C1 (HVAC) 8 Way
Rear A/C-Heater Control C1 (HVAC) 8 Way

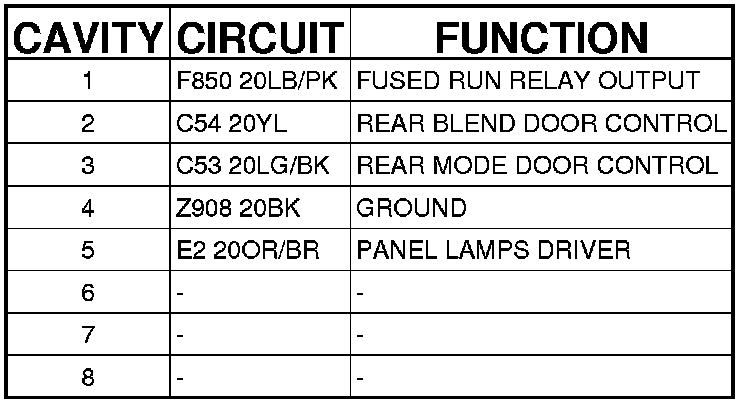

Connector C1 - (HVAC) 8 WAY

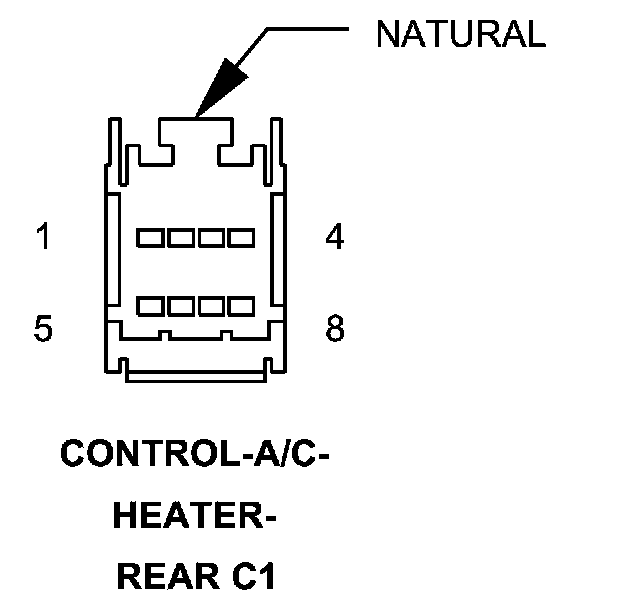

CONTROL-A/C-HEATER-REAR - (HVAC) 8 WAY
