Splash Shield - Removal

REMOVAL

1. Raise and support the vehicle, Maintenance.
2. Remove the wheel and tire to gain access to the front wheel house liner.
3. Carefully remove four rivets from the front fender flare molding.

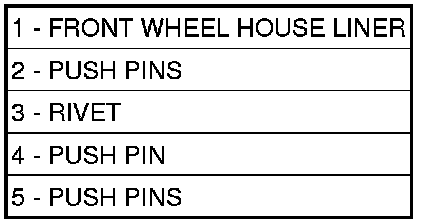

4. Remove the rivet (3) securing the wheel house liner to the lower front fascia.
5. Remove all push pins from wheel house liner.
6. Remove the wheel speed sensor harness from the wheel house liner.
7. Remove front wheel house liner from front wheel house opening.
