Front Fender - Removal
REMOVAL 1.
Remove the front fascia,
Front Bumper Fascia - Removal.
2.

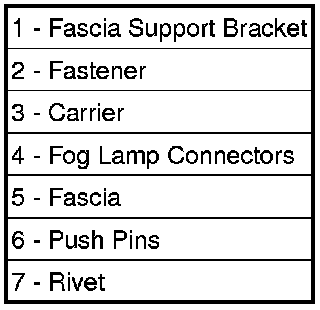

Remove the front fascia support bracket (1).
3.
Remove the
grille,
Grille - Removal.
4.
Remove the two screws (1) from the
fender applique (3).
5.
Use a trim stick C-4755 or equivalent, separate the
fender applique (3) from the fender (2).
6.
Remove the front wheel opening flare molding,
7.
Remove the bolts and remove the
fender.
