Power Seat Switch: Testing and Inspection

POWER SEAT SWITCH

DRIVER WITHOUT MEMORY SEAT SYSTEM





1. Disconnect and isolate the battery negative cable.
2. Remove the power seat switch from the power seat Power Seat Switch - Removal.
3. Use an ohmmeter to test the continuity of the power seat switch. Refer to DRIVER POWER SEAT SWITCH WITHOUT MEMORY SEAT SYSTEM CONTINUITY table. If not OK, replace the faulty power seat switch. If switch tests OK Component Tests and General Diagnostics.

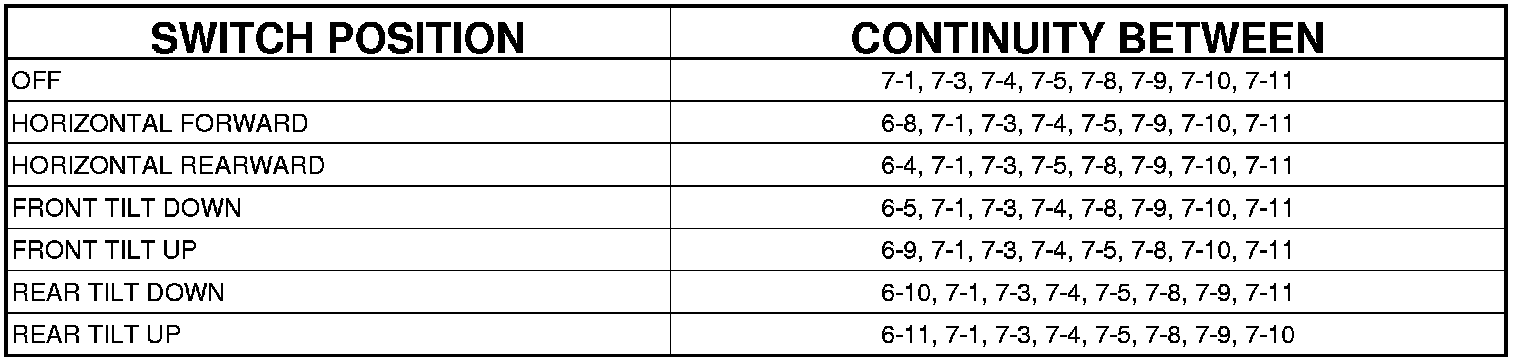

DRIVER POWER SEAT SWITCH WITHOUT MEMORY SEAT SYSTEM CONTINUITY






PASSENGER SEAT





1. Disconnect and isolate the battery negative cable.
2. Remove the power seat switch from the power seat Power Seat Switch - Removal.
3. Use an ohmmeter to test the continuity of the power seat switch. Refer to PASSENGER POWER SEAT SWITCH CONTINUITY table. If not OK, replace the faulty power seat switch. If switch tests OK Component Tests and General Diagnostics.

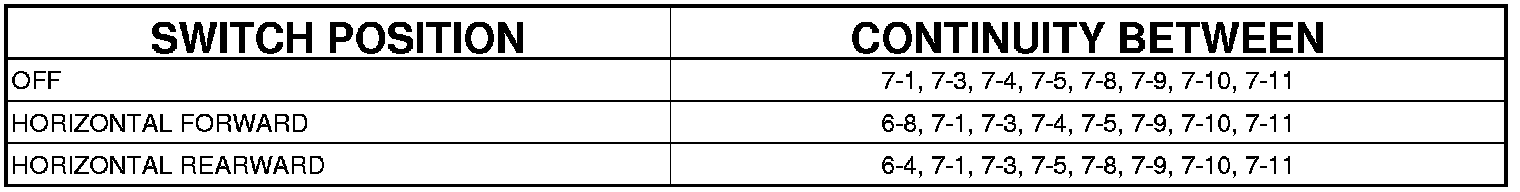

PASSENGER POWER SEAT SWITCH CONTINUITY






DRIVER WITH MEMORY SEAT SYSTEM





1. Disconnect and isolate the battery negative cable.
2. Remove the power seat switch from the power seat Power Seat Switch - Removal.
3. Use an ohmmeter to test the resistance of the power seat switch. Refer to DRIVER POWER SEAT SWITCH WITH MEMORY SEAT SYSTEM CONTINUITY table. If not OK, replace the faulty power seat switch. If switch tests OK Component Tests and General Diagnostics.

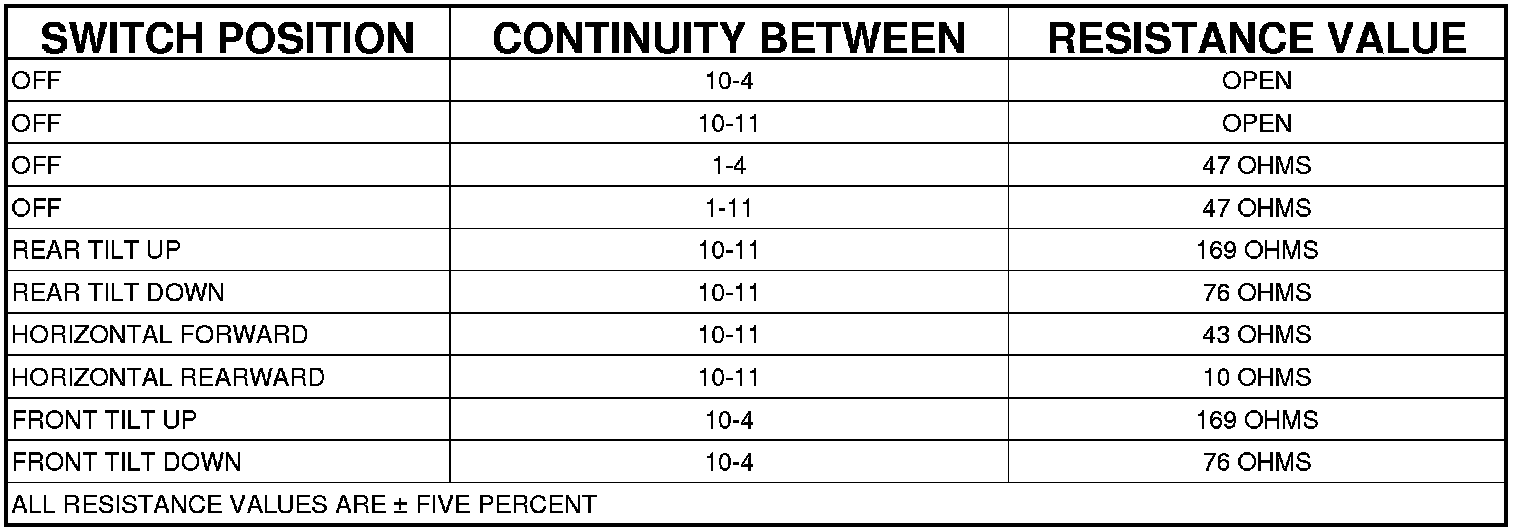

DRIVER POWER SEAT SWITCH WITH MEMORY SEAT SYSTEM CONTINUITY
