Rear

INSTALLATION

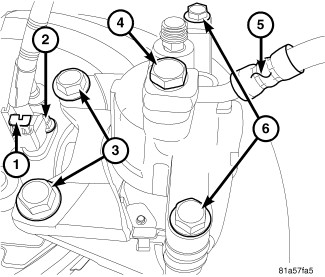

1. Insert the wheel speed sensor through the support plate.
2. Tighten the wheel speed sensor bolt (2) to 9 Nm (80 in. lbs.).
3. Secure the wheel speed sensor wire to the routing clips. Verify that the sensor wire is secure and clear of the rotating components.
4. Reconnect the wheel speed sensor electrical connector (1).

NOTE: Make sure the connector locking tab is fully engaged and locked in position.

5. Lower the vehicle.
