Defroster Grille - Installation






INSTALLATION






CAUTION: Carefully align the defroster grille clips to the instrument panel slots. Make sure the panel is properly positioned to avoid breaking the clip tabs on the defroster grille.

1. Before proceeding with the following repair procedure, review all warnings and cautions. Service Precautions

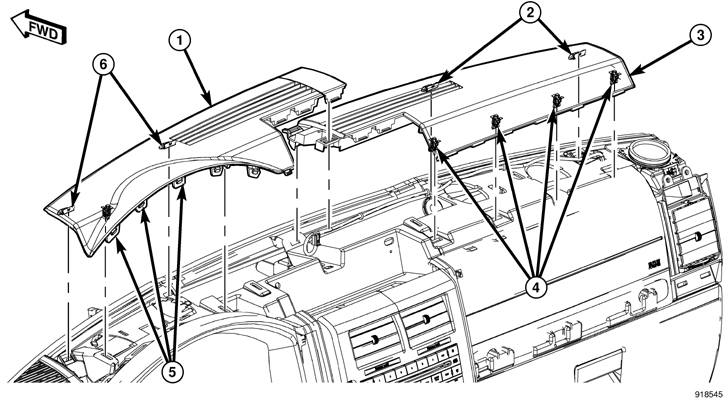

2. Position the defroster grille (3) onto the instrument panel.
3. Seat the rear clips (2) fully.
4. Seat the front clips (4) fully.
5. Position the defroster grille (1) over the cluster bezel and the opposite side of the defroster grille (3).
6. Seat the rear clips (6) fully.
7. Seat the clips into the defroster grille (3) and seat the remaining five clips (5) into the cluster bezel fully.
