Wiper Motor - Installation

INSTALLATION

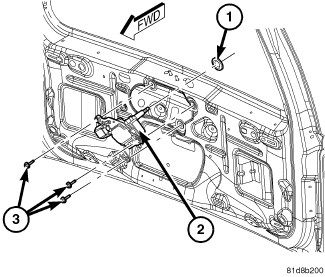

1. If the output shaft bezel and grommet (1) were removed from the outside of the liftgate, install the rubber bezel and grommet into the rear wiper motor output shaft clearance hole of the liftgate outer panel.
2. Position the rear wiper motor and bracket unit (2) onto the liftgate inner panel as a unit.
3. Install and tighten the three screws (3) that secure the mounting bracket to the liftgate. Tighten the screws to 5.5 Nm (49 in. lbs.).
4. Reconnect the wire harness connector to the motor connector receptacle.
5. Reinstall the trim panel onto the liftgate inner panel. Liftgate Trim Panel - Installation.
6. Reinstall the rear wiper arm onto the output shaft. Wiper Arm - Installation.
7. Reconnect the battery negative cable.
