Radiator Upper Crossmember - Installation






INSTALLATION

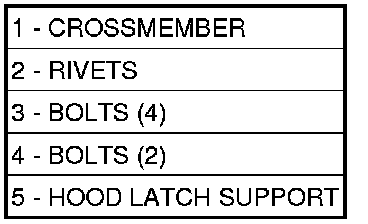

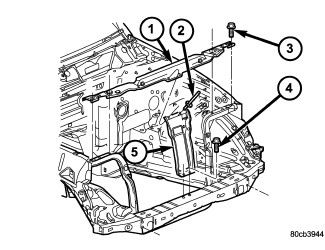

1. Install the crossmember (1) and install the bolts (3).
2. Tighten the bolts to 10 Nm (85 in. lbs.).
3. Install the hood latch support (5) and install the bolts (4).
4. Tighten the bolts to 10 Nm (85 in. lbs.).
5. Install new rivets (2) attaching the hood latch support to the crossmember.
6. Install the hood latch, Hood Latch - Installation
7. Install the grille, Grille - Installation.
8. Install a new rivet securing the washer bottle to the crossmember.
