Defroster Duct - Installation
INSTALLATION 1.

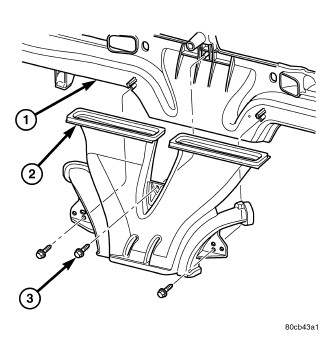

Position the defroster duct (2) into the instrument panel (1).
2.
Install the three screws (3) that secure the defroster duct to the instrument panel. Tighten the screws to 1.2 Nm (10 in. lbs.).
3.
Install the instrument panel
Instrument Panel - Installation.
