Removal

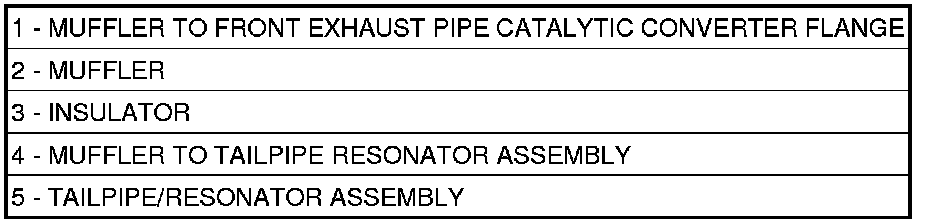

5.7L ENGINE 1.
Raise the vehicle and support the rear of the vehicle by the side rails and allow the axle to hang free.
2.
Saturate the bolts and nuts with heat valve lubricant. Allow 5 minutes for penetration.
3.
Remove
muffler from isolator.
4.
Remove the tailpipe/resonator to
muffler assembly flange nuts.
5.
Remove the front
exhaust pipe/
catalytic converter to
muffler flange nuts.
6.
Remove
muffler from vehicle.
