Heating & AC System: 42
42-REAR MODE OVERCURRENT
- When Monitored:
When actuator movement is requested.
- Set Condition:
If the A/C Heater Control detects an excessive current draw on any of the door driver circuits while attempting to drive this door actuator. Note that only one overcurrent DTC can set per ignition cycle.

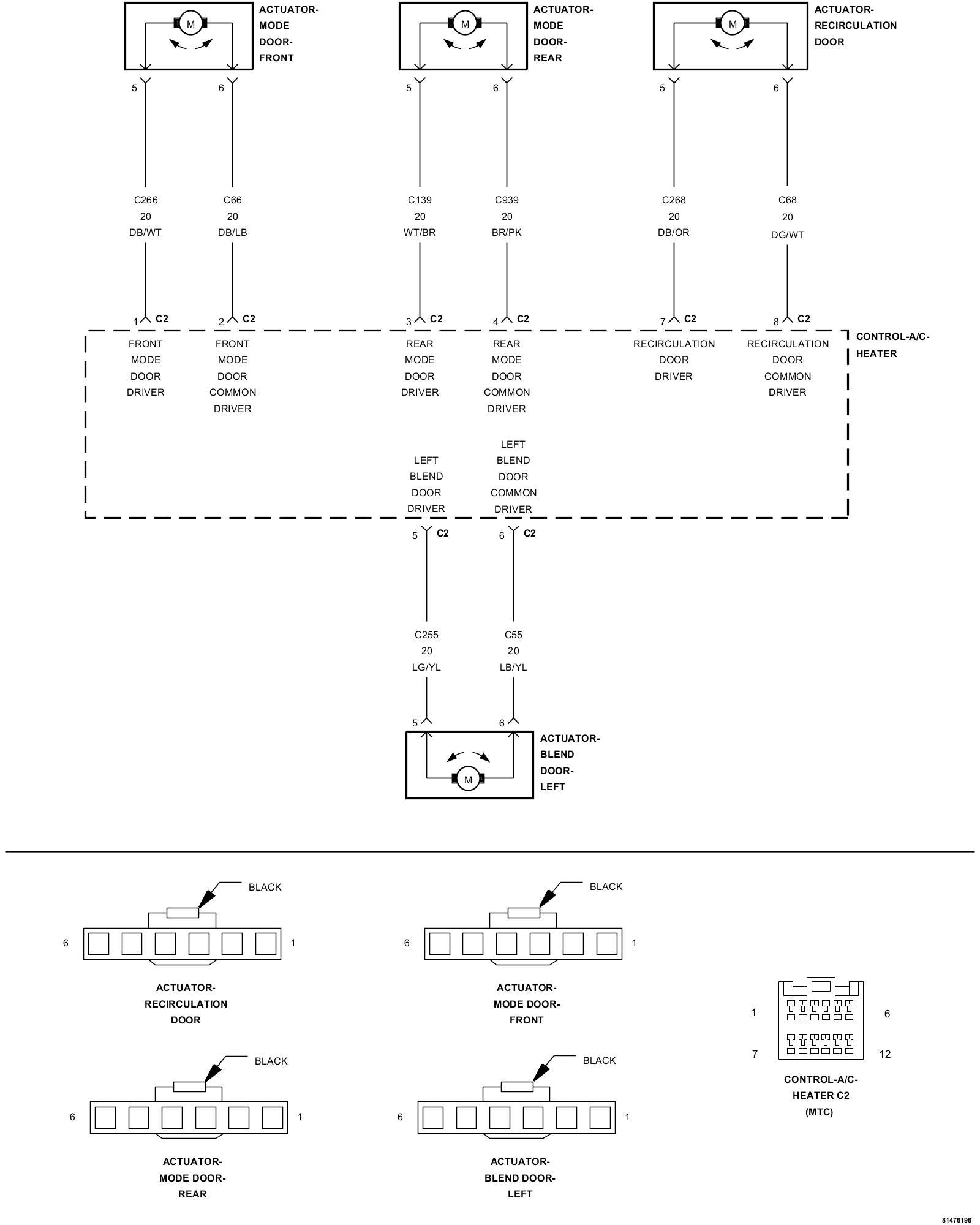

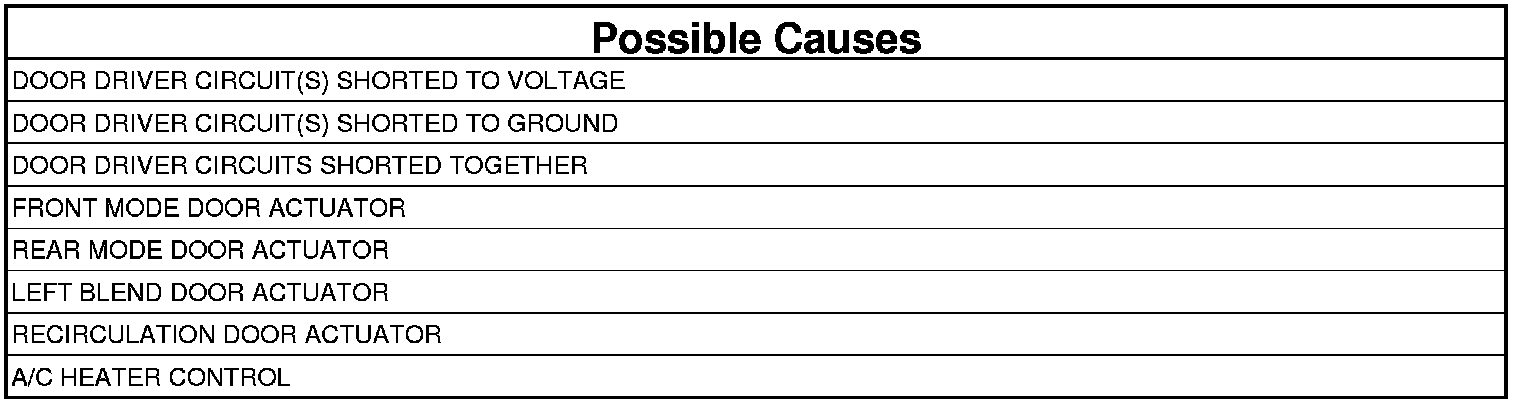

NOTE: This DTC must be active for the result of this test to be valid. Do not perform this test if this DTC is stored. Refer to HVAC System Test (MTC) for stored DTC test procedures. MTC
1. RUN THE ACTUATOR CIRCUIT TEST / DOOR CALIBRATION FUNCTION AND THEN CHECK FOR ACTUATOR CIRCUIT TEST FAULTS
NOTE: Diagnose and repair Actuator Circuit Test faults (DTC 61, 62, 63, 64, 65, 66, 67, 68, 69, 71, and 72) before diagnosing Overcurrent faults (DTC 41, 42, 43, and 44).
1. Turn the ignition on.
2. Actuate the Clear DTC function by performing the following:
- Turn the blower control on.
- Press the A/C mode switch down, turn the blower control to off, wait until both LEDs illuminate (approximately 5 seconds) and then release the A/C mode switch.
- When the A/C status indicator begins displaying DTCs, set the Mode switch to the floor position, simultaneously press the A/C mode switch and the EBL mode switch down until both LEDs start flashing (approximately 5 seconds) and then release the mode switches. Stored DTCs will clear from memory in approximately two seconds.
3. Turn the ignition off, wait 10 seconds, and turn the ignition on.
4. Actuate the Actuator Circuit Test / Door Calibration Function by performing the following:
- Turn the blower control off.
- Press and hold the EBL mode switch down and then turn the blower control on. Continue to hold the EBL mode switch down until the EBL status indicator begins flashing. Then, release the EBL mode switch. While the test / function is running, the EBL status indicator will flash once per second. If the test / function passes, the EBL status indicator will stop flashing. If the test / function fails, the A/C and EBL status indicators will flash alternately. Allow the test / function to run to completion before proceeding.
5. Actuate the Display DTC function by performing the following:
- Turn the blower control on.
- Press the A/C mode switch down, turn the blower control to off, wait until both LEDs illuminate (approximately 5 seconds) and then release the A/C mode switch.
NOTE: The A/C status indicator displays active DTCs when the EBL status indicator is not illuminated and stored DTCs when the EBL status indicator is illuminated.
6. Read DTCs from the A/C status indicator.
Does the A/C status indicator display any of the following DTCs: 61, 62, 63, 64, 65, 66, 67, 68, 69, 71, or 72?
Yes
- As present, diagnose and repair the Actuator Circuit Test faults in the following order: DTC 72 first, then DTC 62, then DTC 61, then DTCs 64, 66, 68, or 71, and finally DTCs 63, 65, 67, or 69.
- Perform the BODY VERIFICATION TEST Body Verification Test.
No
- Go To 2
2. CHECK THE (C266) FRONT MODE DOOR DRIVER CIRCUIT FOR A SHORT TO THE (C139) REAR MODE DOOR DRIVER CIRCUIT, (C939) REAR MODE DOOR COMMON DRIVER CIRCUIT, (C255) LEFT BLEND DOOR DRIVER CIRCUIT, (C55) LEFT BLEND DOOR COMMON DRIVER CIRCUIT, (C268) RECIRCULATION DOOR DRIVER CIRCUIT, AND THE (C68) RECIRCULATION DOOR COMMON DRIVER CIRCUIT
1. Turn the ignition off.
2. Disconnect the A/C Heater Control C2 harness connector.
3. Measure the resistance between the (C266) Front Mode Door Driver circuit and the (C139) Rear Mode Door Driver circuit, (C939) Rear Mode Door Common Driver circuit, (C255) Left Blend Door Driver circuit, (C55) Left Blend Door Common Driver circuit, (C268) Recirculation Door Driver circuit, and the (C68) Recirculation Door Common Driver circuit in the A/C Heater Control C2 harness connector.
Is the resistance below 10k ohms on any of the circuits?
Yes
- Repair all circuits with a resistance below 10k ohms for a short to the (C266) Front Mode Door Driver circuit.
- Perform the BODY VERIFICATION TEST Body Verification Test.
No
- Go To 3
3. CHECK THE (C66) FRONT MODE DOOR COMMON DRIVER CIRCUIT FOR A SHORT TO THE (C139) REAR MODE DOOR DRIVER CIRCUIT, (C939) REAR MODE DOOR COMMON DRIVER CIRCUIT, (C255) LEFT BLEND DOOR DRIVER CIRCUIT, (C55) LEFT BLEND DOOR COMMON DRIVER CIRCUIT, (C268) RECIRCULATION DOOR DRIVER CIRCUIT, AND THE (C68) RECIRCULATION DOOR COMMON DRIVER CIRCUIT
1. Measure the resistance between the (C66) Front Mode Door Common Driver circuit and the (C139) Rear Mode Door Driver circuit, (C939) Rear Mode Door Common Driver circuit, (C255) Left Blend Door Driver circuit, (C55) Left Blend Door Common Driver circuit, (C268) Recirculation Door Driver circuit, and the (C68) Recirculation Door Common Driver circuit in the A/C Heater Control C2 harness connector.
Is the resistance below 10k ohms on any of the circuits?
Yes
- Repair all circuits with a resistance below 10k ohms for a short to the (C66) Front Mode Door Common Driver circuit.
- Perform the BODY VERIFICATION TEST Body Verification Test.
No
- Go To 4
4. CHECK THE (C139) REAR MODE DOOR DRIVER CIRCUIT FOR A SHORT TO THE (C255) LEFT BLEND DOOR DRIVER CIRCUIT, (C55) LEFT BLEND DOOR COMMON DRIVER CIRCUIT, (C268) RECIRCULATION DOOR DRIVER CIRCUIT, AND THE (C68) RECIRCULATION DOOR COMMON DRIVER CIRCUIT
1. Measure the resistance between the (C139) Rear Mode Door Driver circuit and the (C255) Left Blend Door Driver circuit, (C55) Left Blend Door Common Driver circuit, (C268) Recirculation Door Driver circuit, and the (C68) Recirculation Door Common Driver circuit in the A/C Heater Control C2 harness connector.
Is the resistance below 10k ohms on any of the circuits?
Yes
- Repair all circuits with a resistance below 10k ohms for a short to the (C139) Rear Mode Door Driver circuit.
- Perform the BODY VERIFICATION TEST Body Verification Test.
No
- Go To 5
5. CHECK THE (C939) REAR MODE DOOR COMMON DRIVER CIRCUIT FOR A SHORT TO THE (C255) LEFT BLEND DOOR DRIVER CIRCUIT, (C55) LEFT BLEND DOOR COMMON DRIVER CIRCUIT, (C268) RECIRCULATION DOOR DRIVER CIRCUIT, AND THE (C68) RECIRCULATION DOOR COMMON DRIVER CIRCUIT
1. Measure the resistance between the (C939) Rear Mode Door Common Driver circuit and (C255) Left Blend Door Driver circuit, (C55) Left Blend Door Common Driver circuit, (C268) Recirculation Door Driver circuit, and the (C68) Recirculation Door Common Driver circuit in the A/C Heater Control C2 harness connector.
Is the resistance below 10k ohms on any of the circuits?
Yes
- Repair all circuits with a resistance below 10k ohms for a short to the (C939) Rear Mode Door Common Driver circuit.
- Perform the BODY VERIFICATION TEST Body Verification Test.
No
- Go To 6
6. CHECK THE (C255) LEFT BLEND DOOR DRIVER CIRCUIT FOR A SHORT TO THE (C268) RECIRCULATION DOOR DRIVER CIRCUIT AND THE (C68) RECIRCULATION DOOR COMMON DRIVER CIRCUIT
1. Measure the resistance between the (C255) Left Blend Door Driver circuit and the (C268) Recirculation Door Driver circuit and the (C68) Recirculation Door Common Driver circuit in the A/C Heater Control C2 harness connector.
Is the resistance below 10k ohms on any of the circuits?
Yes
- Repair all circuits with a resistance below 10k ohms for a short to the (C255) Left Blend Door Driver circuit.
- Perform the BODY VERIFICATION TEST Body Verification Test.
No
- Go To 7
7. CHECK THE (C55) LEFT BLEND DOOR COMMON DRIVER CIRCUIT FOR A SHORT TO THE (C268) RECIRCULATION DOOR DRIVER CIRCUIT AND THE (C68) RECIRCULATION DOOR COMMON DRIVER CIRCUIT
1. Measure the resistance between the (C55) Left Blend Door Common Driver circuit and the (C268) Recirculation Door Driver circuit and the (C68) Recirculation Door Common Driver circuit in the A/C Heater Control C2 harness connector.
Is the resistance below 10k ohms on any of the circuits?
Yes
- Repair all circuits with a resistance below 10k ohms for a short to the (C55) Left Blend Door Common Driver circuit.
- Perform the BODY VERIFICATION TEST Body Verification Test.
No
- Go To 8
8. CHECK THE FRONT MODE DOOR ACTUATOR CIRCUIT RESISTANCE
1. Measure the resistance between the (C66) Front Mode Door Common Driver Circuit and the (C266) Front Mode Door Driver circuit in the A/C Heater Control C2 harness connector.
Is the resistance below 30.0 ohms?
Yes
- Go To 9
No
- Go To 10
9. CHECK THE (C66) FRONT MODE DOOR COMMON DRIVER CIRCUIT FOR A SHORT TO THE (C266) FRONT MODE DOOR DRIVER CIRCUIT
1. Disconnect the Front Mode Door Actuator harness connector.
2. Measure the resistance between the (C66) Front Mode Door Common Driver Circuit and the (C266) Front Mode Door Driver circuit in the A/C Heater Control C2 harness connector.
Is the resistance below 10k ohms?
Yes
- Repair the (C66) Front Mode Door Common Driver Circuit for a short to the (C266) Front Mode Door Driver circuit.
- Perform the BODY VERIFICATION TEST Body Verification Test.
No
- Replace the Front Mode Door Actuator.
- Perform the BODY VERIFICATION TEST Body Verification Test.
10. CHECK THE REAR MODE DOOR ACTUATOR CIRCUIT RESISTANCE
1. Measure the resistance between the (C939) Rear Mode Door Common Driver Circuit and the (C139) Rear Mode Door Driver circuit in the A/C Heater Control C2 harness connector.
Is the resistance below 30.0 ohms?
Yes
- Go To 11
No
- Go To 12
11. CHECK THE (C939) REAR MODE DOOR COMMON DRIVER CIRCUIT FOR A SHORT TO THE (C139) REAR MODE DOOR DRIVER CIRCUIT
1. Disconnect the Rear Mode Door Actuator harness connector.
2. Measure the resistance between the (C939) Rear Mode Door Common Driver Circuit and the (C139) Rear Mode Door Driver circuit in the A/C Heater Control C2 harness connector.
Is the resistance below 10k ohms?
Yes
- Repair the (C939) Rear Mode Door Common Driver Circuit for a short to the (C139) Rear Mode Door Driver circuit.
- Perform the BODY VERIFICATION TEST Body Verification Test.
No
- Replace the Rear Mode Door Actuator.
- Perform the BODY VERIFICATION TEST Body Verification Test.
12. CHECK THE LEFT BLEND DOOR ACTUATOR CIRCUIT RESISTANCE
1. Measure the resistance between the (C55) Left Blend Door Common Driver Circuit and the (C255) Left Blend Door Driver circuit in the A/C Heater Control C2 harness connector.
Is the resistance below 30.0 ohms?
Yes
- Go To 13
No
- Go To 14
13. CHECK THE (C55) LEFT BLEND DOOR COMMON DRIVER CIRCUIT FOR A SHORT TO THE (C255) LEFT BLEND DOOR DRIVER CIRCUIT
1. Disconnect the Left Blend Door Actuator harness connector.
2. Measure the resistance between the (C55) Left Blend Door Common Driver Circuit and the (C255) Left Blend Door Driver circuit in the A/C Heater Control C2 harness connector.
Is the resistance below 10k ohms?
Yes
- Repair the (C55) Left Blend Door Common Driver Circuit for a short to the (C255) Left Blend Door Driver circuit.
- Perform the BODY VERIFICATION TEST Body Verification Test.
No
- Replace the Left Blend Door Actuator.
- Perform the BODY VERIFICATION TEST Body Verification Test.
14. CHECK THE RECIRCULATION DOOR ACTUATOR CIRCUIT RESISTANCE
1. Measure the resistance between the (C68) Recirculation Door Common Driver Circuit and the (C268) Recirculation Door Driver circuit in the A/C Heater Control C2 harness connector.
Is the resistance below 30.0 ohms?
Yes
- Go To 15
No
- Go To 16
15. CHECK THE (C68) RECIRCULATION DOOR COMMON DRIVER CIRCUIT FOR A SHORT TO THE (C268) RECIRCULATION DOOR DRIVER CIRCUIT
1. Disconnect the Recirculation Door Actuator harness connector.
2. Measure the resistance between the (C68) Recirculation Door Common Driver Circuit and the (C268) Recirculation Door Driver circuit in the A/C Heater Control C2 harness connector.
Is the resistance below 10k ohms?
Yes
- Repair the (C68) Recirculation Door Common Driver Circuit for a short to the (C268) Recirculation Door Driver circuit.
- Perform the BODY VERIFICATION TEST Body Verification Test.
No
- Replace the Recirculation Door Actuator.
- Perform the BODY VERIFICATION TEST Body Verification Test.
16. VERIFY THAT THE FAULT IS STILL PRESENT
1. Reconnect the A/C Heater Control C2 harness connector.
2. Reconnect all of the door actuator harness connectors.
3. Turn the ignition on.
4. Actuate the Clear DTC function by performing the following:
- Turn the blower control on.
- Press the A/C mode switch down, turn the blower control to off, wait until both LEDs illuminate (approximately 5 seconds) and then release the A/C mode switch.
- When the A/C status indicator begins displaying DTCs, set the Mode switch to the floor position, simultaneously press the A/C mode switch and the EBL mode switch down until both LEDs start flashing (approximately 5 seconds) and then release the mode switches. Stored DTCs will clear from memory in approximately two seconds.
5. Turn the ignition off, wait 10 seconds, and turn the ignition on.
6. Actuate the Actuator Circuit Test / Door Calibration Function by performing the following:
- Turn the blower control off.
- Press and hold the EBL mode switch down and then turn the blower control on. Continue to hold the EBL mode switch down until the EBL status indicator begins flashing. Then, release the EBL mode switch. While the test / function is running, the EBL status indicator will flash once per second. If the test / function passes, the EBL status indicator will stop flashing. If the test / function fails, the A/C and EBL status indicators will flash alternately. Allow the test / function to run to completion before proceeding.
7. Actuate the Display DTC function by performing the following:
- Turn the blower control on.
- Press the A/C mode switch down, turn the blower control to off, wait until both LEDs illuminate (approximately 5 seconds) and then release the A/C mode switch.
NOTE: The A/C status indicator displays active DTCs when the EBL status indicator is not illuminated and stored DTCs when the EBL status indicator is illuminated.
8. Read DTCs from the A/C status indicator.
Does the A/C status indicator display DTC 42?
Yes
- Replace the A/C Heater Control.
- Perform the BODY VERIFICATION TEST Body Verification Test.
No
- Using the wiring diagram as a guide, inspect the wiring and connectors for conditions causing an intermittent short that set the original fault. Repair as necessary. Then, if present, diagnose and repair all other DTCs.
- Perform the BODY VERIFICATION TEST Body Verification Test.
