B16A8

B16A8-HIGH BEAM CAMERA ALIGNMENT PERFORMANCE- RIGHT



- When Monitored:
With the ignition on.

- Set Condition:
The DTC will be set if the target light source is not within the correctable limits of the mirror.





TEST FOR INTERMITTENT CONDITION
1. Using the scan tool, record and erase DTCs.

Does the scan tool display: B16A8-HIGH BEAM CAMERA ALIGNMENT PERFORMANCE- RIGHT?

Yes

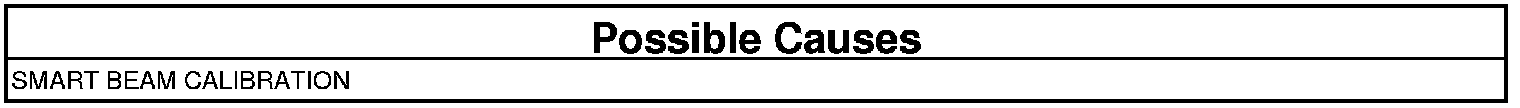

- Perform the Smart Beam Calibration. Adjustments

No

- Test complete.
