Crankshaft Main Bearing

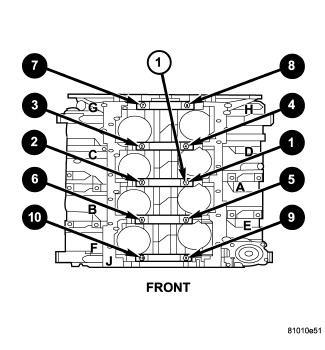

CRANKSHAFT MAIN BEARINGMain Bearing Cap - Bolts M-12
28 Nm + 90° Turn (21 ft. lbs. + 90° Turn)
Crossbolts M-8
21.5 Nm (16 ft. lbs.).
NOTE: The main cap crossbolts are torqued after final torque of the main cap bolts. Always use a new washer/seal on crossbolts.
Bearing Clearance
0.023 - 0.051 mm (0.0009 - 0.002 in)
MAIN BEARING SELECTION CHART - 5.7 - 6.1L
