Liftgate






REMOVAL

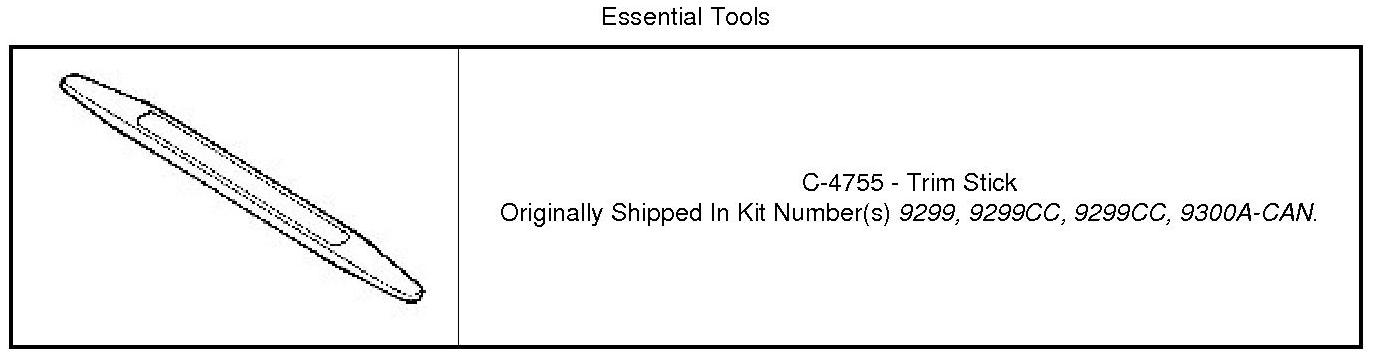

Special Tools:










1. Remove the two screws and the cargo hooks, if equipped.
2. Using a trim stick or equivalent, release the retaining clips (2) and remove the liftgate scuff plate (1).
