Crossmember - Removal

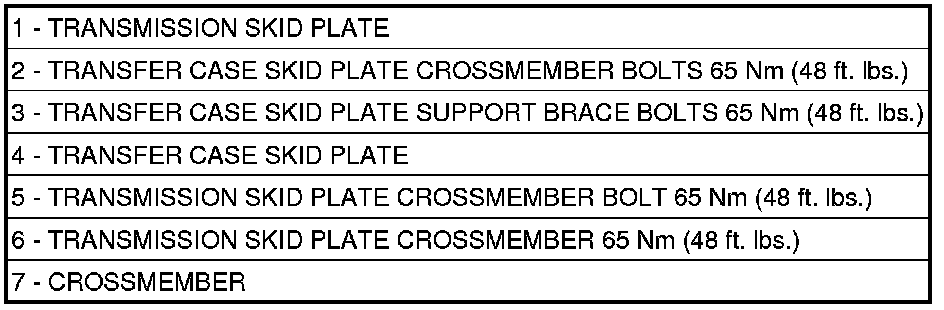

REMOVALSKID PLATES 1.
Remove the transmission skid plate (1).
Skid Plate - Removal 2.
Remove the transfer case skid plate (4).
Skid Plate - Removal 3.
Remove the left side bolts (1).
4.
Remove the fuel tank skid plate bolts (2).
5.
Remove the right side bolts (1) and remove the crossmember (3).
