Brake and/or Accelerator Pedals - Installation

INSTALLATION

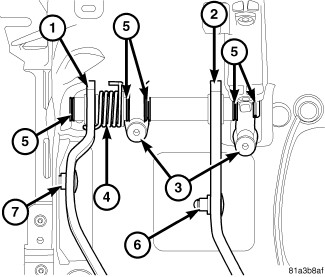

1. Install new bushings (5) in pedal and lP structure lubricate all bushings and shaft with multi-purpose grease.
2. Position the shaft in lP structure and install the shaft mounting bolts (3).
3. Install new retaining clip.
4. Install the instrument panel Instrument Panel - Installation
5. Install and adjust the brake lamp switch Adjustments.
6. Install negative battery cable.
