Cargo Area

CARGO AREA

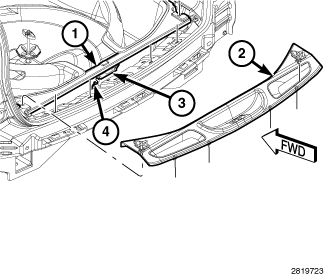

1. Position the Low Frequency (LF) antenna (3) to the underside of the rear flange of the rear cargo area frame (1).
2. Install and tighten the two screws that secure the LF antenna to the rear cargo area frame. Tighten the screws securely.
3. Reconnect the body wire harness connector (4) to the connector receptacle of the LF antenna.
4. Reinstall the scuff plate (2) onto the liftgate opening sill. Scuff Plate - Installation.
5. Lower the rear cargo area load floor panel.
6. Reconnect the battery negative cable.
