Air Duct: Description and Operation

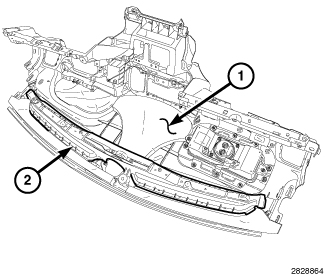

DESCRIPTIONNOTE: LHD model shown. RHD model similar.The defroster outlets receive airflow from the HVAC housing through a molded plastic defroster duct (2) that is attached to the underside of the instrument panel cover (1).
The defroster duct is integral to the instrument panel cover and is not serviced separately.
