Load Floor - Installation
INSTALLATION 1.

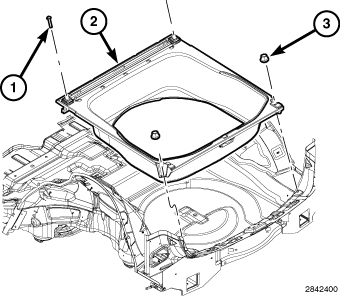

Install the load floor bin (2) and install the cargo loop screws (1).
2.
Install the nuts (3).
3.

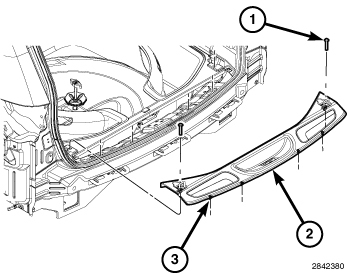

Position the liftgate
scuff plate (2) back into the vehicle and seat the retaining clips (3) fully.
4.
Install the cargo loop screws (1).
5.

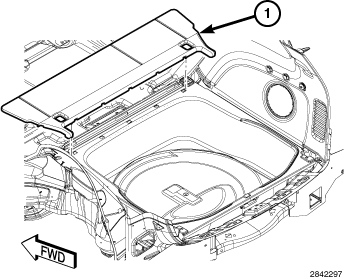

Position the load floor gap hider (1) back into place and seat the retaining clips fully.
6.

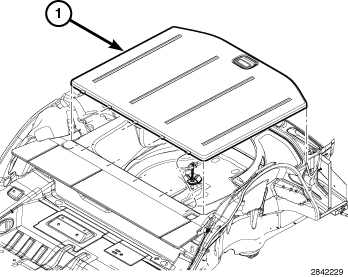

Install the load floor lid (1).
