Front Fog Lamp - Installation






LAMP

EXCEPT SRT

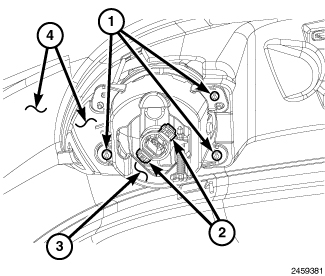

1. Reach through the outboard opening in the front of the front wheel house splash shield to access the back of the front fog lamp.
2. Position the front fog lamp mounting bracket (3) to the fog lamp bezel on the back of the lower front fascia (4).
3. Install and tighten the three screws (1) that secure the mounting bracket to the bezel. Tighten the screws securely.
4. Reconnect the headlamp and dash wire harness connector to the front fog lamp bulb (2) connector receptacle.
5. Reconnect the battery negative cable.
6. Confirm proper fog lamp alignment. Adjustments.

SRT

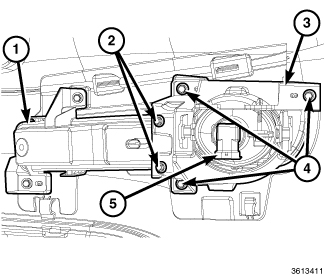

1. Position the front fog lamp and bracket (3) as a unit to the outboard end of the accent lamp housing (1) on the back of the front fascia.
2. Install and tighten the two screws (2) that secure the front fog lamp bracket to the outboard end of the accent lamp housing (1). Tighten the screws securely.
3. Install and tighten the three screws (4) that secure the front fog lamp bracket to the back of the front fascia. Tighten the screws securely.
4. Reconnect the headlamp and dash wire harness connector to the front fog lamp bulb connector receptacle (5).
5. Position the lower portion of the front wheel house splash shield to the front fascia and reinstall the fasteners that secure the shield to the fascia. Service and Repair.
6. Reconnect the battery negative cable.
7. Confirm proper fog lamp alignment. Adjustments.
