Front Door Glass - Installation

INSTALLATION






NOTE: Use care not to transfer grease from the lower edge of the door glass to the outer belt molding.

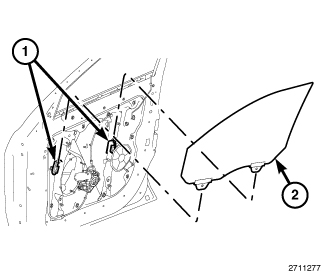

1. Carefully lower the door glass (2) into the door through the window opening.
2. Rotate the door glass into position and engage it to the window regulator glass sliders (1) making sure the glass and lift plates are properly seated.

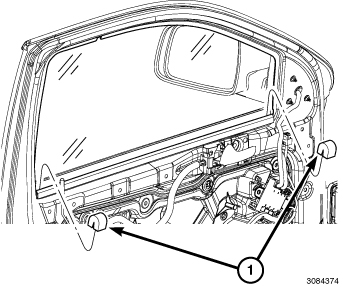

3. Position the foam seals (1) onto the door mounting flange and seat fully.

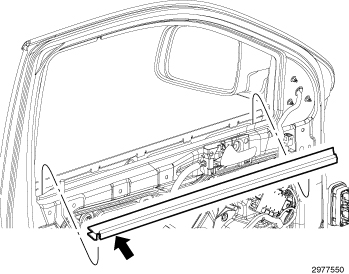

4. Position the belt molding onto the door mounting flange and seat fully.
5. Install the door speaker. Speaker - Installation
6. Install the upper trim molding.
