Starter - Installation

6.4L





1. Position the stater into the vehicle.
2. Install the starter stud bolts Tighten to 25 Nm (19 ft lbs.).
3. Connect the stater electrical cable.
4. Position the B+ cable onto the stater.
5. Install the B+ retainer.Tighten to 68 Nm (50 ft. lbs).
6. Install the stater heat shield and retainers.

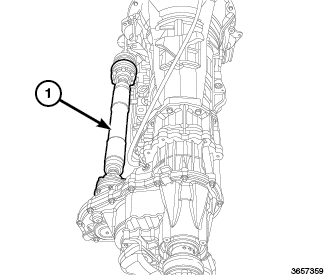

7. Install the front half shaft (1) Drive Shaft - Installation.

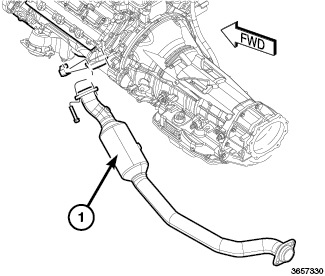

8. Install the catalytic converter Catalytic Converter - Installation.
9. Install the front belly pan.
10. Connect the negative battery cable.
