Ambient Temperature Sensor - Installation
INSTALLATION 1.

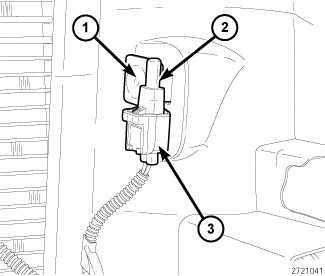

Position the
ambient temperature sensor (2) in the vehicle and install the push pin type retainer (1).
2.
Connect the wire harness connector (3) to the
ambient temperature sensor.
3.
Install the radiator grille assembly,
Grille - Installation.
4.
Connect the negative battery cable.
