Blower Motor - Installation

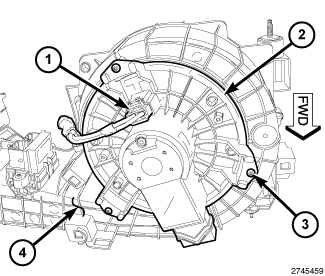

INSTALLATIONNOTE: LHD model shown. RHD model similar. 1.
Position the
blower motor (2) into the HVAC housing (4).
2.
Install the three screws (3) that secure the
blower motor to the HVAC housing. Tighten the screws to 2.2 Nm (20 in. lbs.).
3.
Connect the wire harness connector (1) to the
blower motor.
4.
Install the passenger side instrument panel silencer.
5.
Reconnect the negative battery cable.
