Installation
INSTALLATION 1.

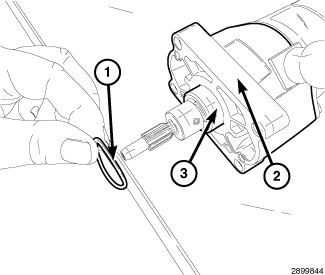

Be sure ELSD Motor O ring surface (3) is clean.
2.
Install ELSD Motor O ring (1).
3.
Connect electrical harness connectors to the ELSD Motor.
4.

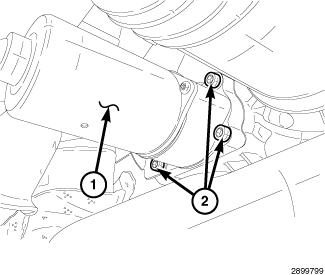

Install ELSD Motor (1) into the axle and secure with mounting bolts (2). Tighten to 7-9 Nm (60-84 In. lbs.).
