Splash Shield - Installation

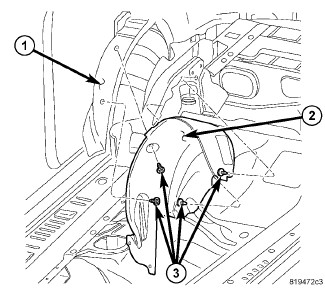

INSTALLATION 1.
Install the wheel house liner (2) to the wheel house opening (1).
2.
Install the four push pins (3) to the wheel house liner (2).
3.
Install the two push pins securing the sill plate molding and the wheel house liner to the body.
4.
Install the rear wheel flare molding,
Service and Repair.
