Installation
INSTALLATION 1.

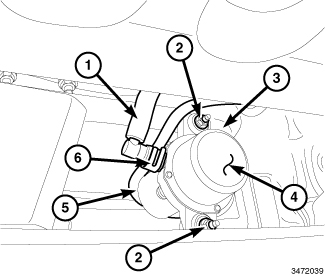

Position the vacuum pump (4), install the mounting nuts (2) and torque to 55 Nm (41 ft. lbs.).
2.
Connect the electrical connector (3).
3.
Connect the quick-connect vacuum hose (1, 6) to the vacuum pump (4) and seat the locking tab (6).
4.

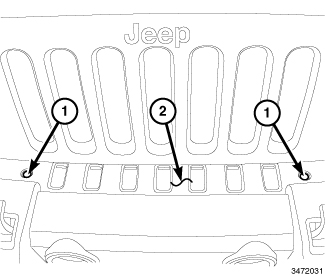

Position the bumper filler panel (2) and install the fasteners (1).
