Fluid - M/T: Service and Repair
DRAIN AND FILL 1.
With vehicle in neutral, position vehicle on hoist.
2.
Loosen the exhaust as necessary to gain access to drain plug. .
3.

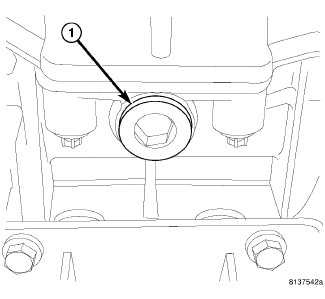

Remove drain plug (1) and drain fluid.
4.

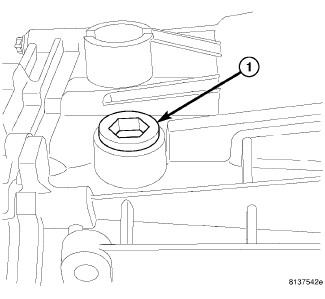

Install drain plug and remove fill plug (1).
5.
Fill transmission with 1.5 L (3.17 pts.) of Mopar(R) Manual Transmission Lubricant MS-9224 or to the bottom of the fill plug (1) hole.
6.
Install the exhaust. .
