Installation






INSTALLATION






NOTE: The fresh air lines and hoses from the ESIM must have a clear opening to the atmosphere. Check the fresh air lines, including the fresh air filter, for obstructions or restrictions at the ESIM. If a restriction is present, the system will not allow free flow passage of clean air, and an early shut off of the fuel fill nozzle may occur during refueling.

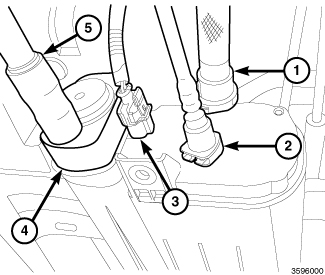

1. Be sure O-ring (2) and EVAP canister opening (3) are clean.






CAUTION: The electrical connector (3) on the ESIM switch must be in 3 O'clock position after installation. This step must be done for proper switch operation.

2. Install the ESIM switch (4) into the EVAP canister and rotate clockwise until the electrical connector is in the 3 O'clock position.
3. Connect the fresh air hose (5) to the ESIM switch (4).
4. Connect the electrical connector (3) to the ESIM switch (4).
5. Connect the negative battery cable and tighten nut to 5 Nm (45 in. lbs.).
