Engine Cooling Radiator - Removal



GAS ENGINE







WARNING: Do not open the radiator draincock with the system hot and under pressure because serious burns from coolant can occur.

1. Drain cooling system.
2. Remove radiator fan.
3. Disconnect lower radiator hose.
4. Remove fasteners attaching AC condenser to radiator. Reposition AC condenser.

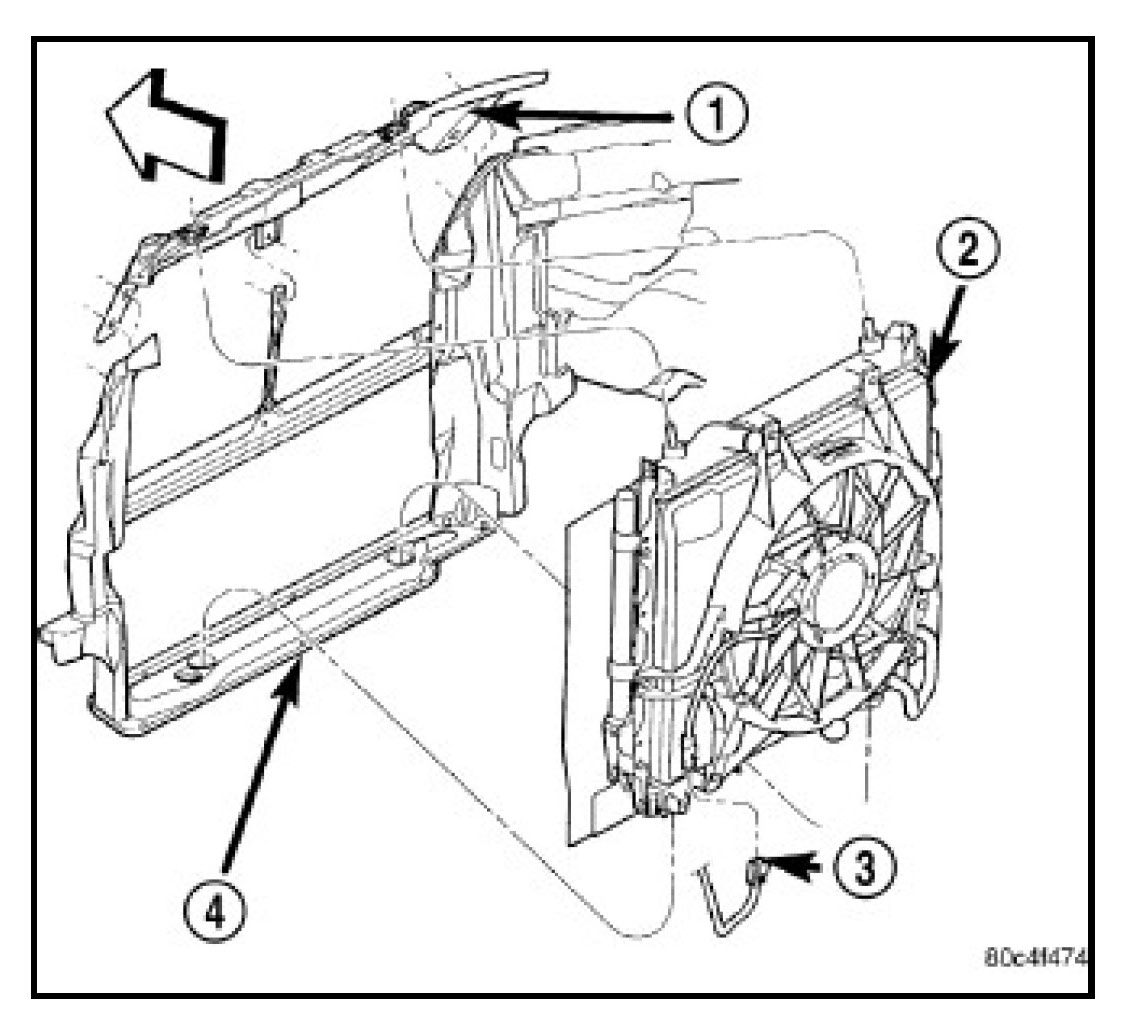

5. Remove radiator assembly by lifting it up from the engine compartment. Care should be taken not to damage the cooling fins and tubes during removal.
