Engine Cooling Radiator - Installation



Radiator, Engine Cooling

INSTALLATION

CAUTION: Before installing the radiator or A/C condenser, be sure the radiator-to-body and radiator-to-A/C condenser rubber air seals are properly fastened to their original positions. These are used at the top, bottom and sides of the radiator and A/C condenser. To prevent overheating, these seals must be installed to their original positions.







1. Position the air seals onto the radiator.

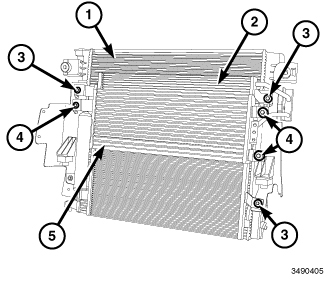

2. Install the A/C condenser (2) onto the radiator (1). Tighten bolts to 8 N.m (70 in. lbs.).
3. Install the transmission cooler (5) onto the A/C condenser (2). Tighten bolts to 8 N.m (70 in. lbs.).
4. Guide the radiators alignment dowels into the rubber grommets located in lower radiator crossmember. Install and tighten mounting bolts to 8 N.m (70 in. lbs.).

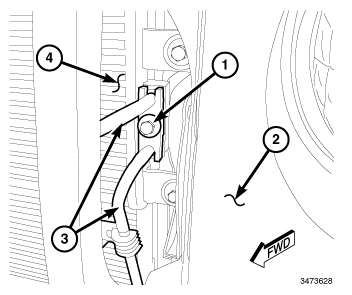

5. Position the transmission cooler lines (3) onto the cooler tapping block. Tighten bolt (1) to 8 N.m (70 in. lbs.).
6. Install the front grille.

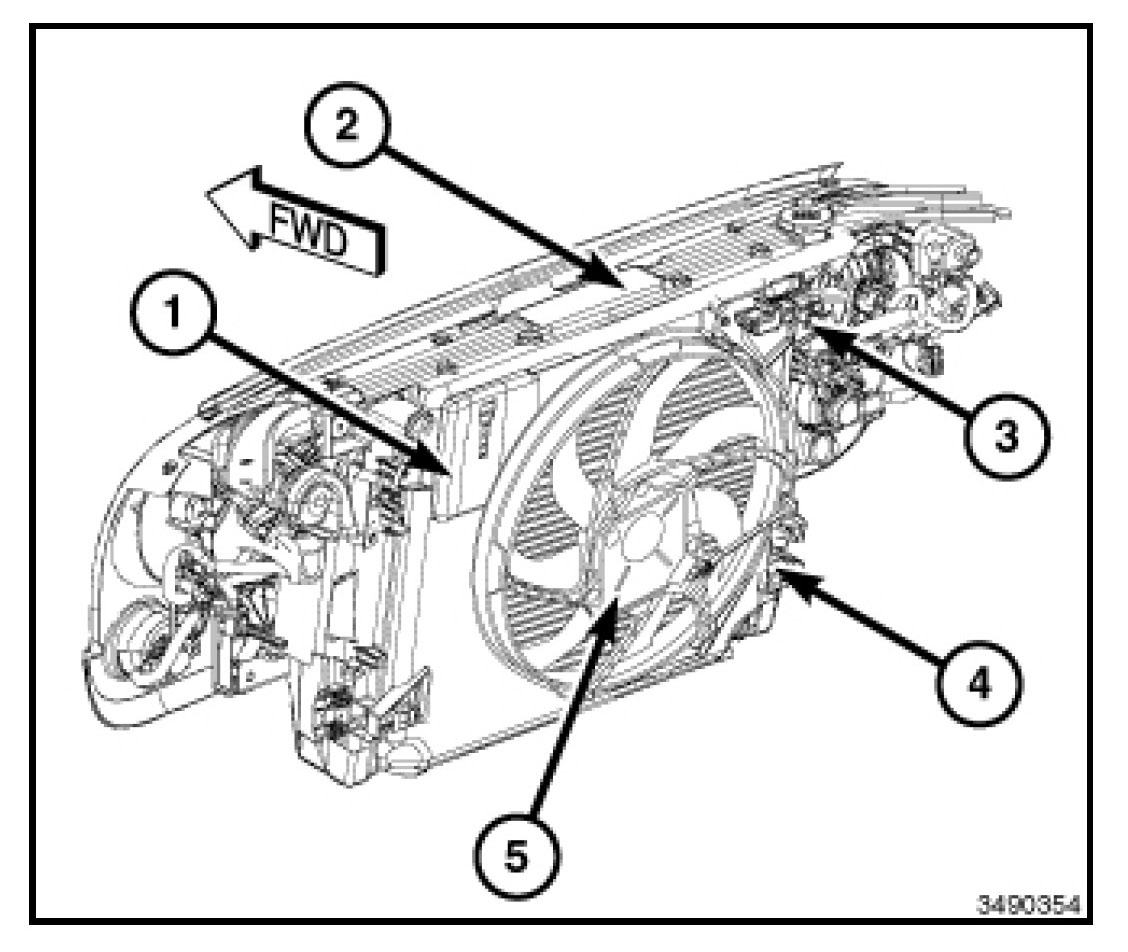

7. Position the lower cooling fan tabs onto the mounts located on the radiator (4).
8. Install the cooling fan shroud bolts.
9. Connect the cooling fan wire harness connector (3).
10. Install the lower radiator hose.

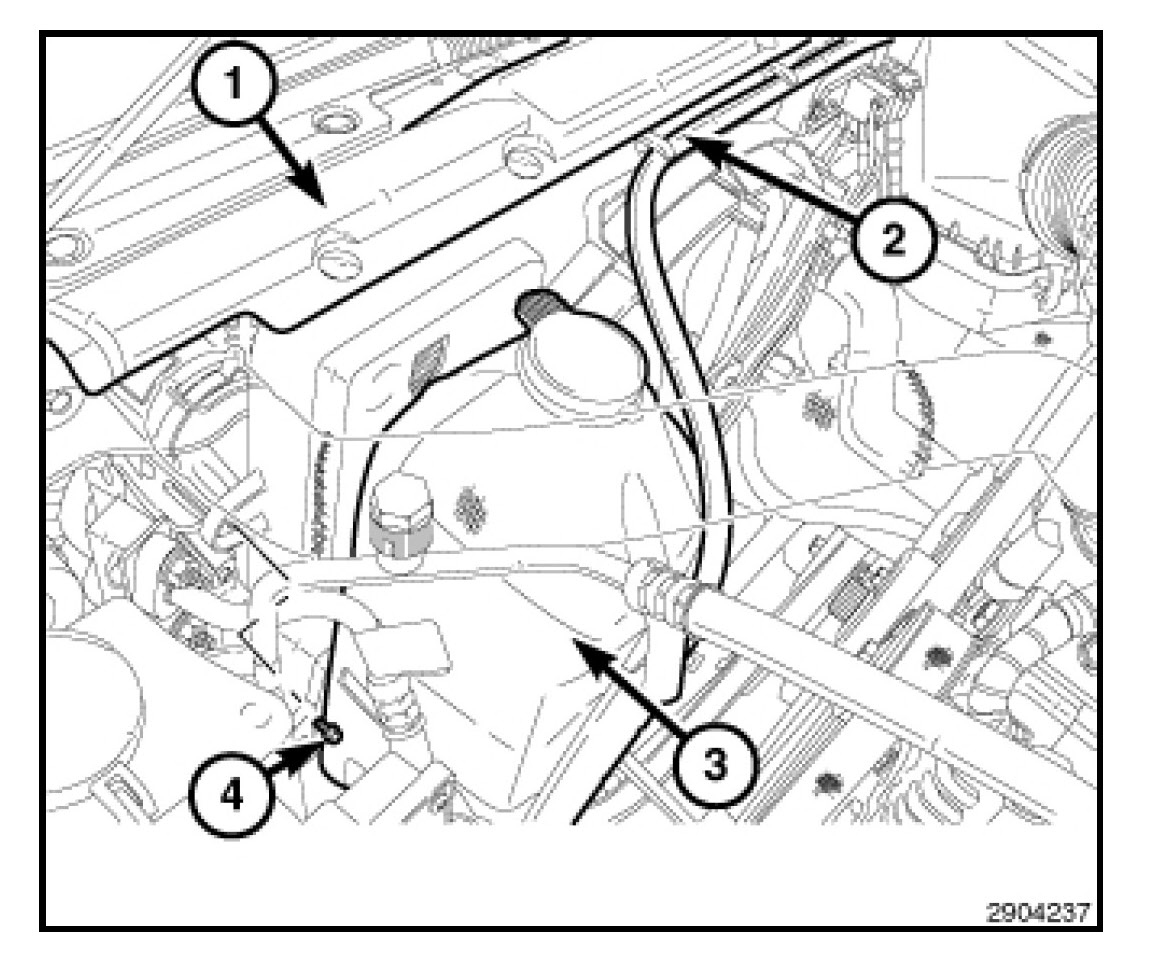

11. Install upper radiator seal (2).







12. Position the A/C lines to the tapping block and install mounting bolt. Tighten to 8 N.m (70 in. lbs.).
13. Install the coolant recovery container (3).
14. Install the upper radiator hose.
15. Fill the cooling system with correct coolant.
16. Install the air intake assembly.
17. Connect the battery negative cable.
18. Start engine and check for leaks.
