Cruise Control Module: Testing and Inspection
Cruise Control-Cruise Control Unit:
Cruise Control-Circuit Testing:

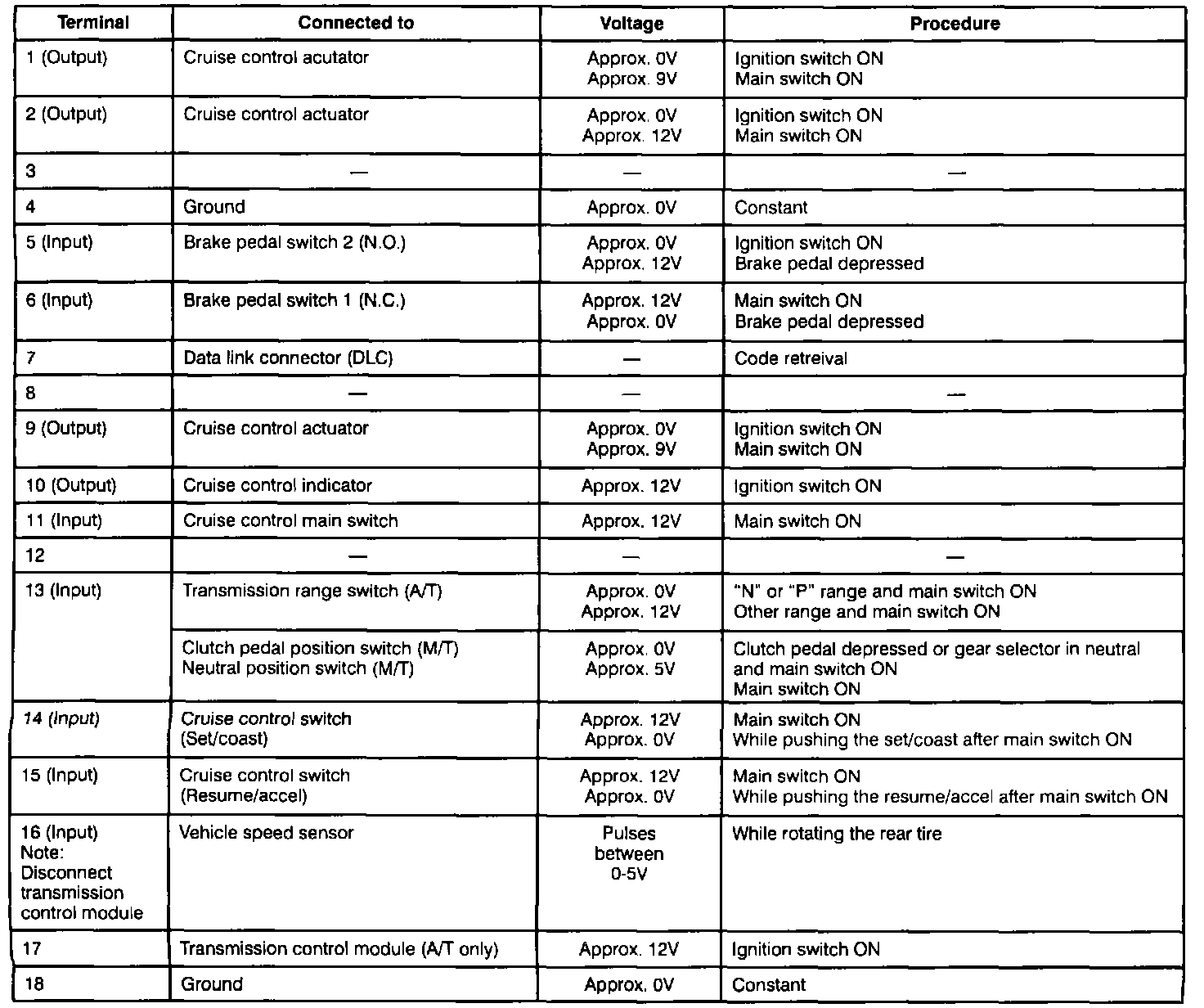

1.
Connect a voltmeter between
cruise control module and ground. (Connector C228 connected)
2.
Turn ignition switch
ON and check the terminal voltages as described below.
