Camber & Caster
1.
Raise and support front of vehicle.
Fig. 1 Mounting Block Nuts:
2.
Remove mounting block nuts,
Fig. 1.Fig. 2 Mounting Block Adjustment Positions:

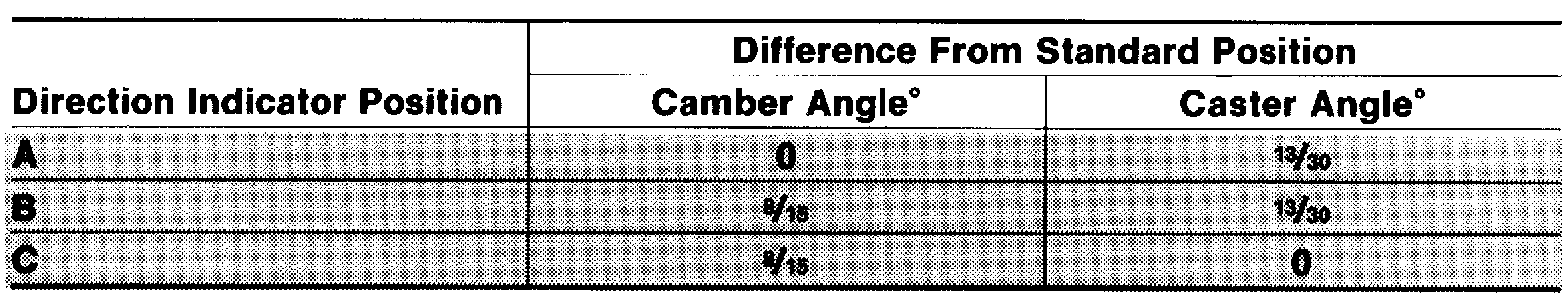

Fig. 3 Camber & Caster Adjustment:
3.
Push mounting block downward,
Fig. 2, and turn to desired position,
Fig. 3, to adjust camber and caster angles.
4.
Install and
torque mounting nuts to 17-22 ft. lbs.
