Power Steering Pressure Switch: Testing and Inspection
Test:
INSPECTION 1.
Disconnect the P/S pressure switch connector.
2.

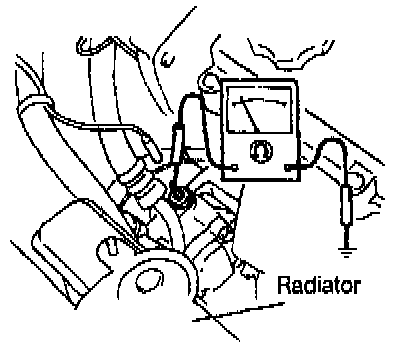

Connect an ohmmeter between the switch and the ground.
3.
Start the engine and run it at idle. Check continuity of the switch while turning the steering wheel.
4.
If not as specified, replace the P/S pressure switch.
