ADJUSTMENT
1. Disconnect the connector from the throttle position (TP) sensor.

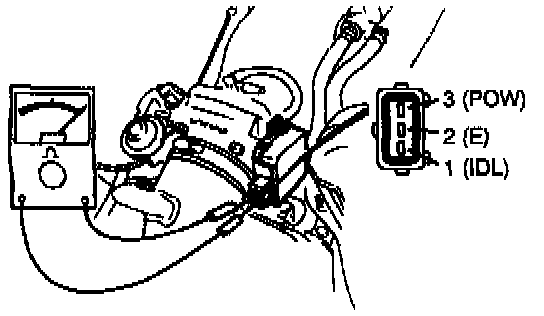

2. Connect an ohmmeter to the throttle sensor terminals 1(IDL) and 2(E).
3. Insert a 0.016 in (0.4 mm) feeler gauge between the throttle stop screw and the stop lever.
4. Loosen the two attaching screws.
5. Rotate the throttle position (TP) sensor clockwise approximately 30 degrees, then rotate it back counterclockwise until the continuity exists.

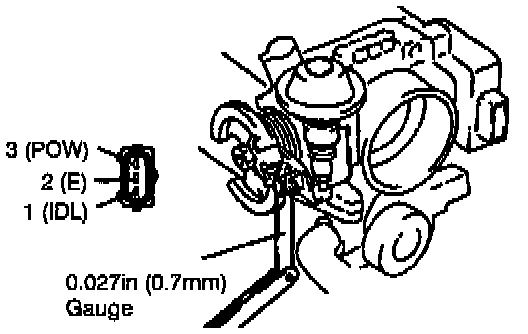

6. Replace the feeler gauge with a 0.027 in (0.7 mm) gauge.

7. Verify that the continuity does not exist.
8. If it exists, repeat Steps 3 through 6.
9. Tighten the two attaching screws.

Tightening torque: 14 - 21 in lb. (1.6 - 2.4 Nm)

NOTICE: Do not move the throttle position (TP) sensor from the set position when tightening the screws.

10. Open the throttle valve fully a few times.
11. Recheck the adjustment of the throttle position (TP) sensor.
