Throttle Position Sensor: Testing and Inspection

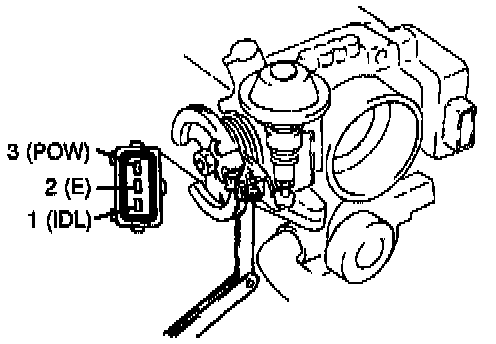

Test - Connector View:
Adjustment:

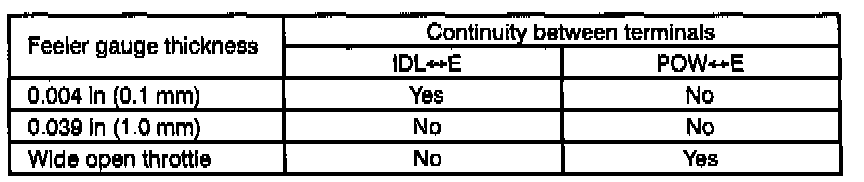

Spec Chart:
INSPECTION 1.
Disconnect the connector from the throttle position (TP) sensor.
2.
Connect an ohmmeter to the throttle position (TP) sensor.
3.
Insert a feeler gauge between the throttle stop screw and the stop lever and check the continuity between terminals.
