Test Light
Test Light:

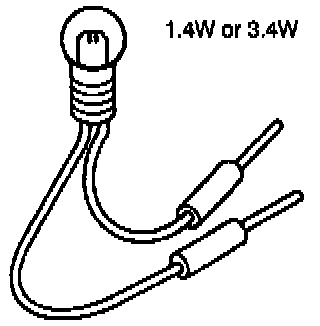

TEST LIGHT The test light, as shown in the figure, uses a 12V bulb. The two lead wires should be connected to probes.
The test light is used for simple voltage checks and in checking for short circuits.
CAUTION: When checking the engine control module (ECM), never use a bulb exceeding 3.4 Watts.
