Transaxle Range Switch W/ Shift Pattern Indicator

Description:

OPERATION
1. Verify that the starter operates only with the ignition switch in the START position and the selector lever in P or N position.
2. Verify that the back-up lights illuminate when shifted to the R position with the ignition switch in the ON position.

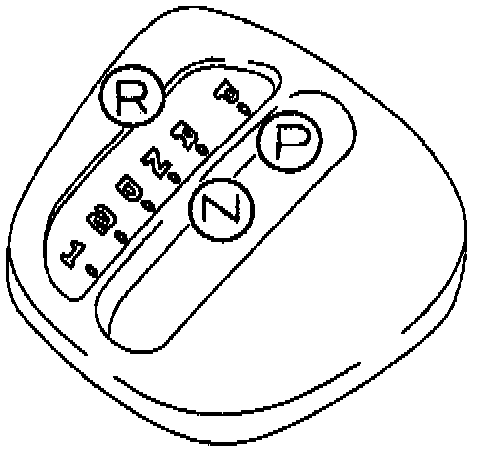

3. Verify that the position of the selector lever and the shift pattern indicator of the instrument cluster correspond.
4. If not as specified, Check the transaxle range switch.

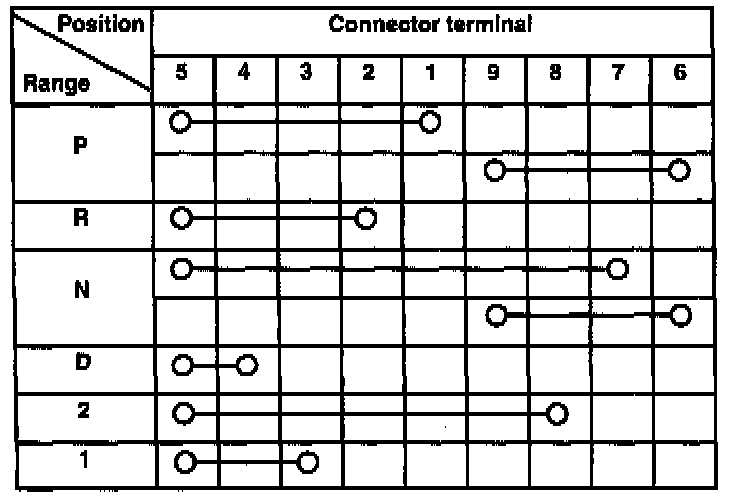

Spec Chart:

Connector View:

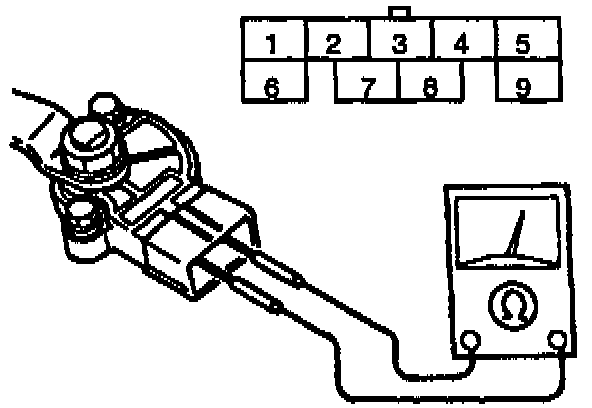

CONTINUITY
1. Disconnect the negative battery cable.
2. Remove the battery, air cleaner assembly, and battery carrier.
3. Disconnect the transaxle range switch connector.
4. Check for continuity at the transaxle range switch.
5. If not as specified, replace or adjust the transaxle range switch.
6. Connect the transaxle range switch connector.
7. Install the battery carrier, air cleaner assembly, and battery.
