Rear Cross-Member: Service and Repair
1.
Raise and support vehicle, then remove
wheels.
2.
Remove brake pipe and holder.

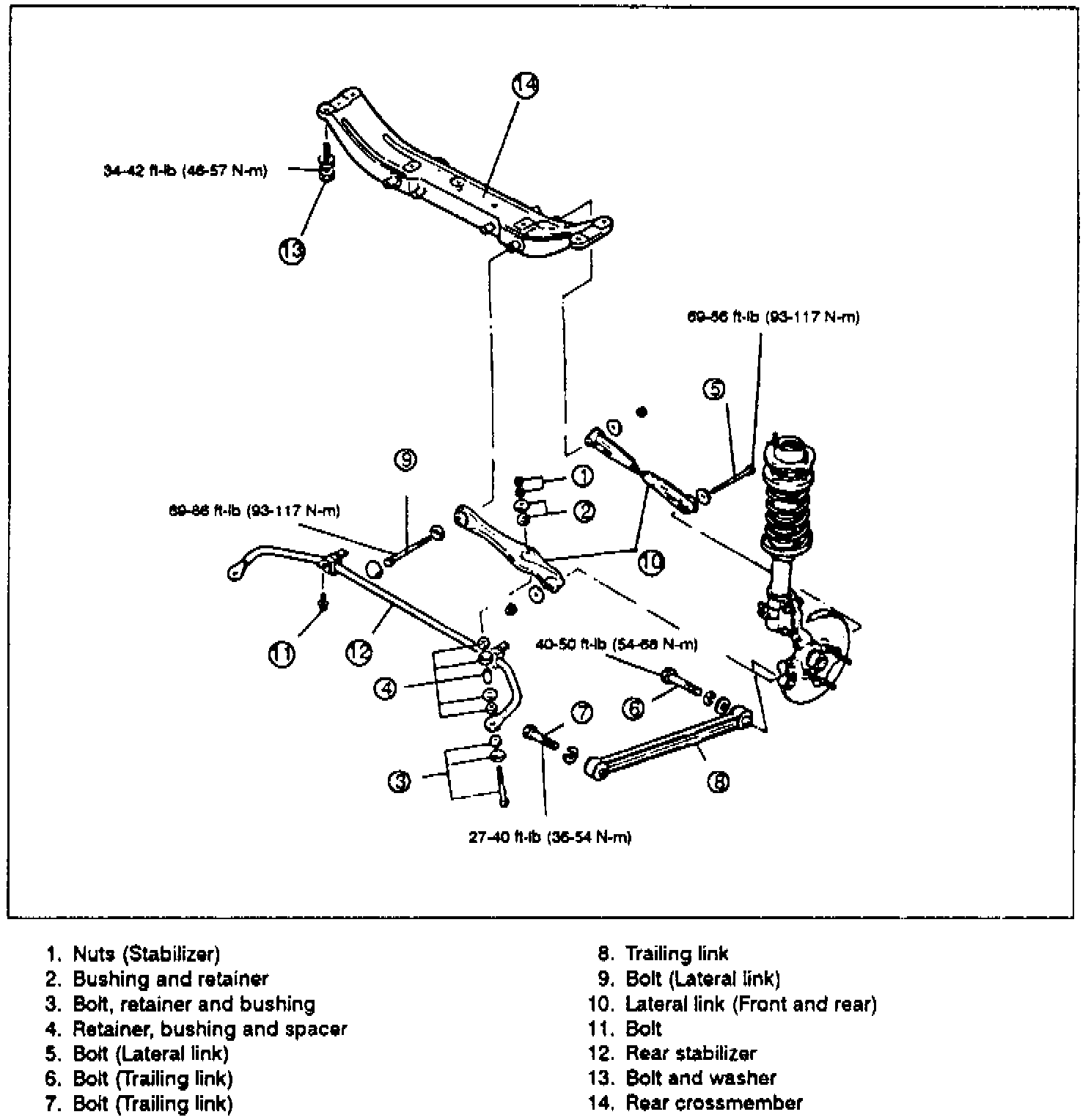

Fig. 6 Rear Crossmember Replacement:
3.
Remove crossmember in numbered sequence shown in
Fig. 6. 4.
Reverse procedure to install. Loosely tighten lateral link and trailing link bolts, then lower vehicle and tighten all nuts and bolts to specifications.
