Brake Pad: Service and Repair
1.
Remove caliper assembly bolts and pull caliper from disc.
2.
Remove brake flex hose mounting bolt and disconnect brake flex hose from caliper.

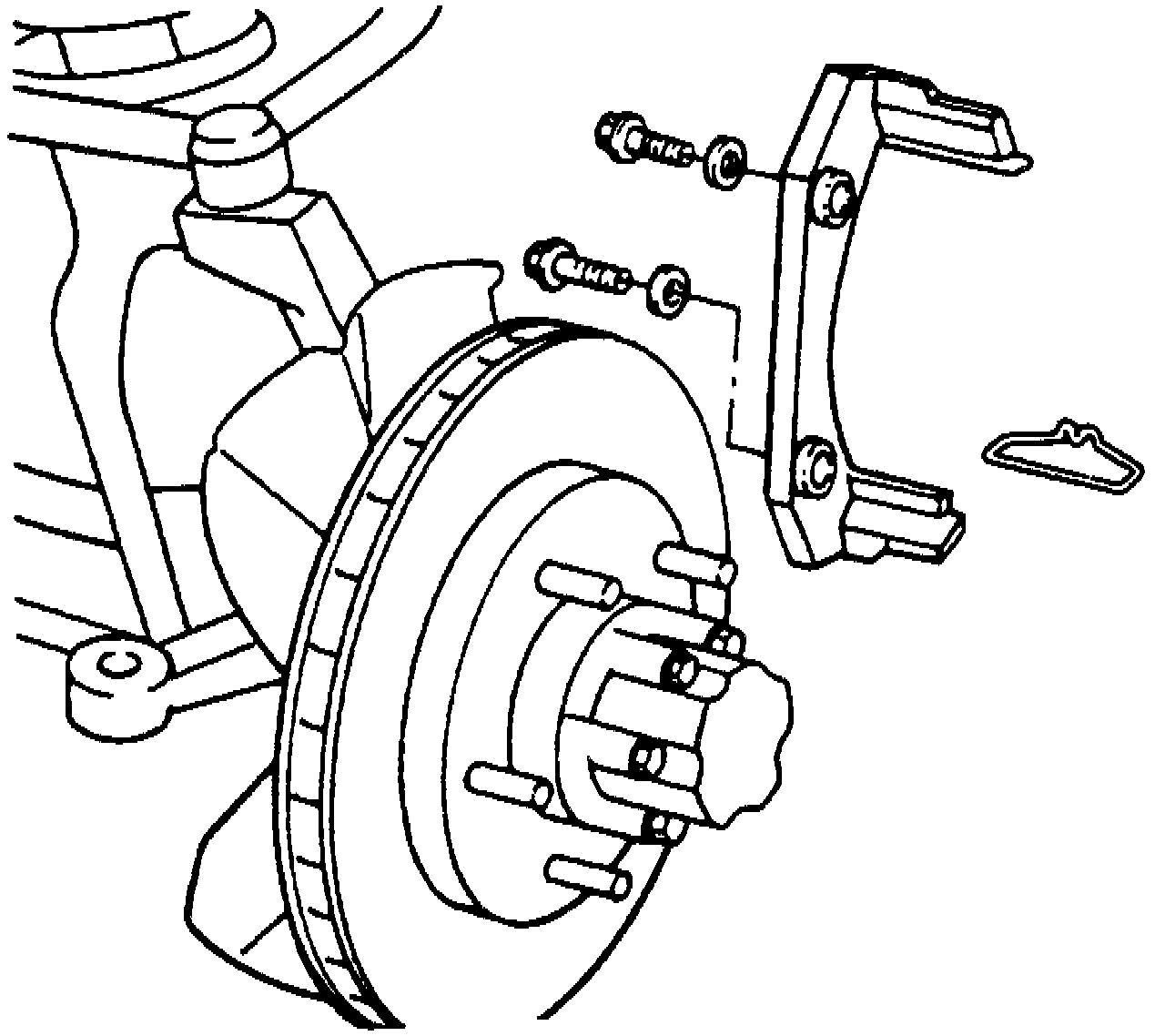

Fig. 2 Brake Pad Adapter Removal:
3.
Remove adapter, then the
brake pads from adapter,
Fig. 2. 4.
Reverse procedure to install. Bleed brake system.
