Housing Assembly HVAC: Service and Repair

NOTE: On models equipped with airbag system, refer to Technician Safety Information for system disarming and arming procedures.

1. Discharge A/C system.
2. Disconnect battery ground cable.
3. Disconnect intake and outlet pipe from evaporator using suitable quick coupling tool. Immediately plug all open fittings to keep moisture out of A/C system.
4. Remove cover and drain hose.
5. Remove glove compartment and disconnect wiring harness connector. Dashboard / Instrument Panel

Fig. 9 Blower Motor/Evaporator Unit Replacement:

6. Remove blower motor/evaporator unit, Fig. 9.

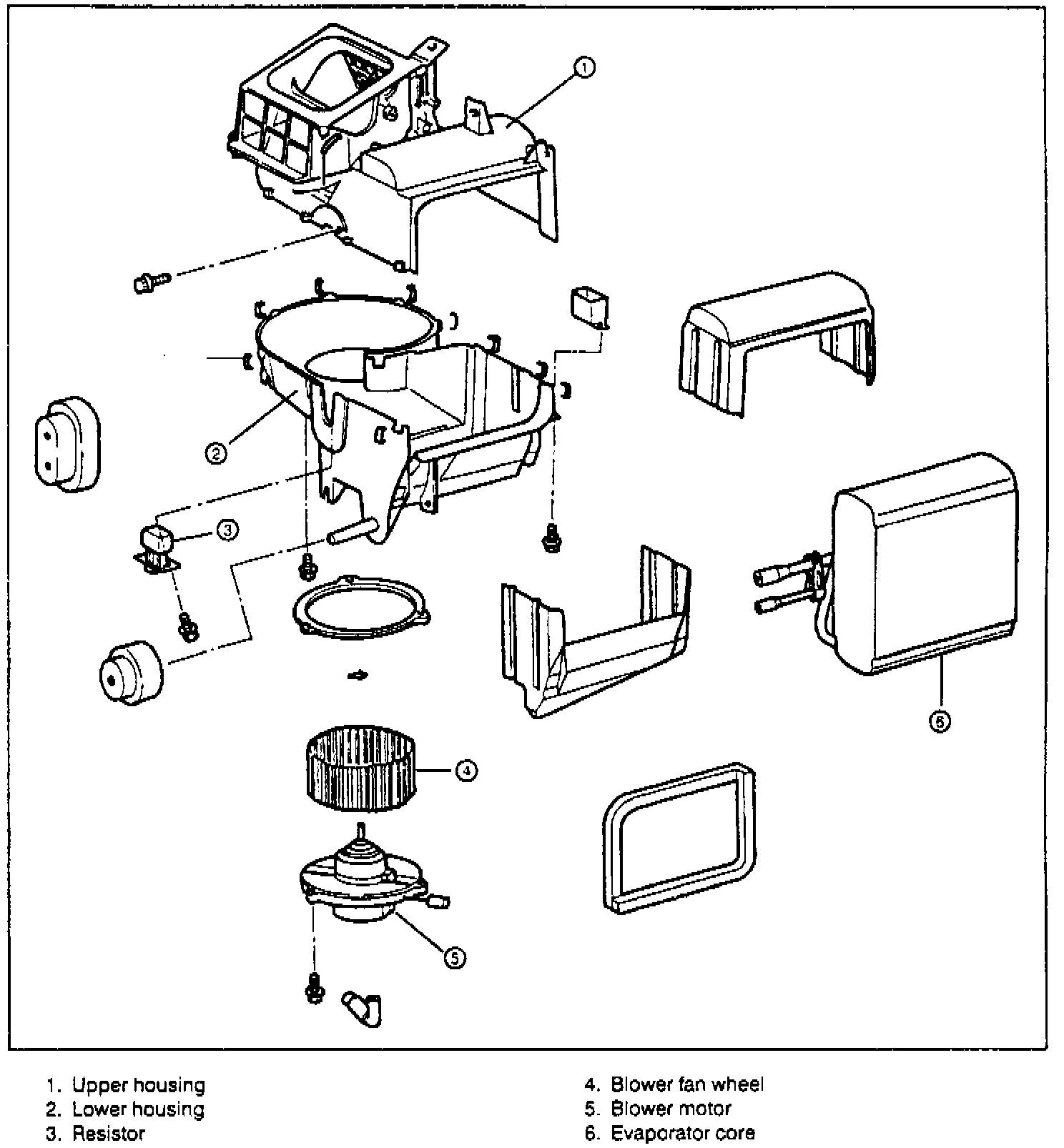

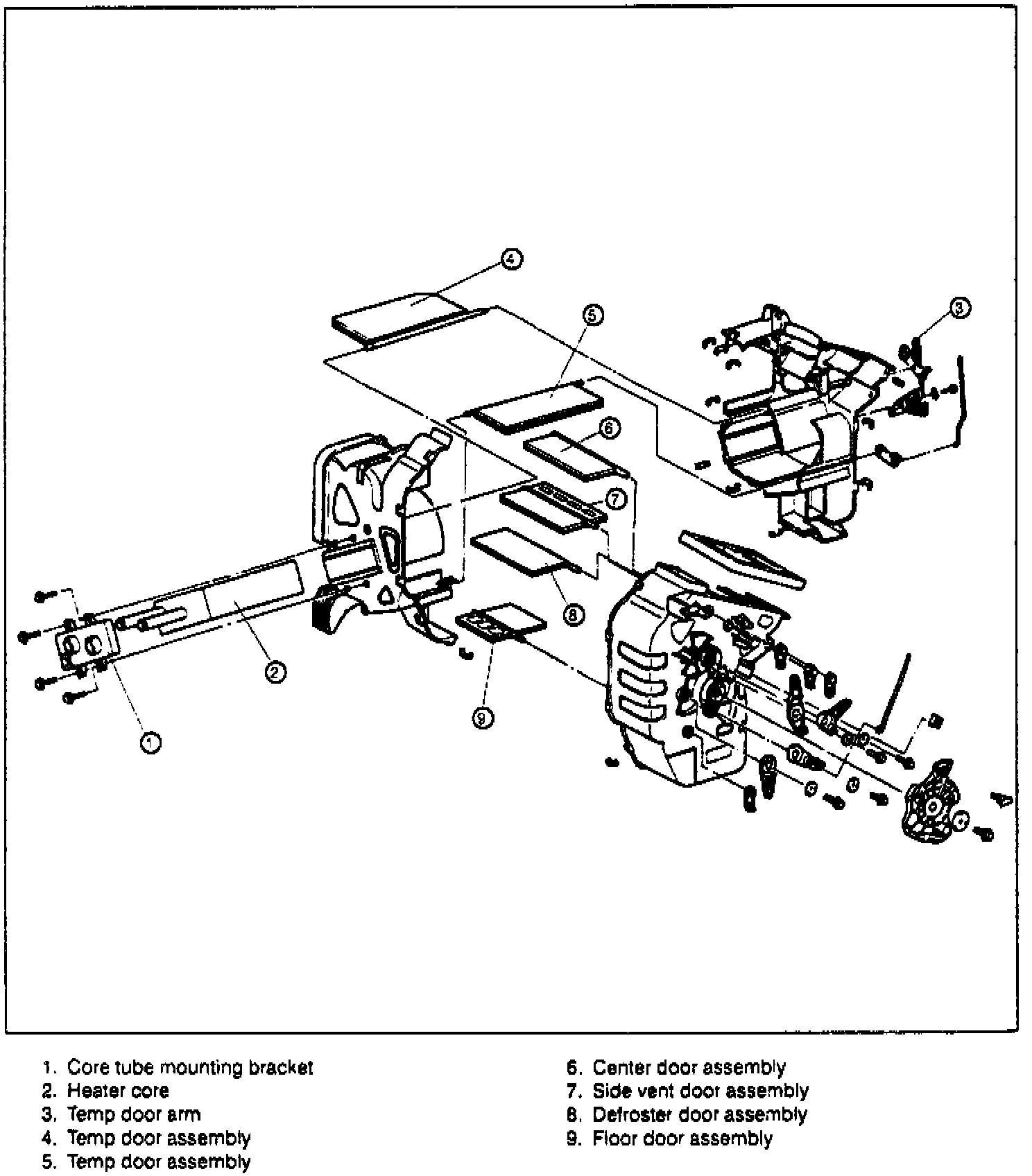

Fig. 10 Exploded View Of Blower Motor/Evaporator Unit:

7. Disassemble blower motor/evaporator unit and remove blower motor as shown in Fig. 10.
8. Reverse procedure to install. Evacuate and recharge refrigerant system.
9. On models equipped with airbag system, refer to Technician Safety Information for system disarming and arming procedures.
