Lighting and Horns: Testing and Inspection

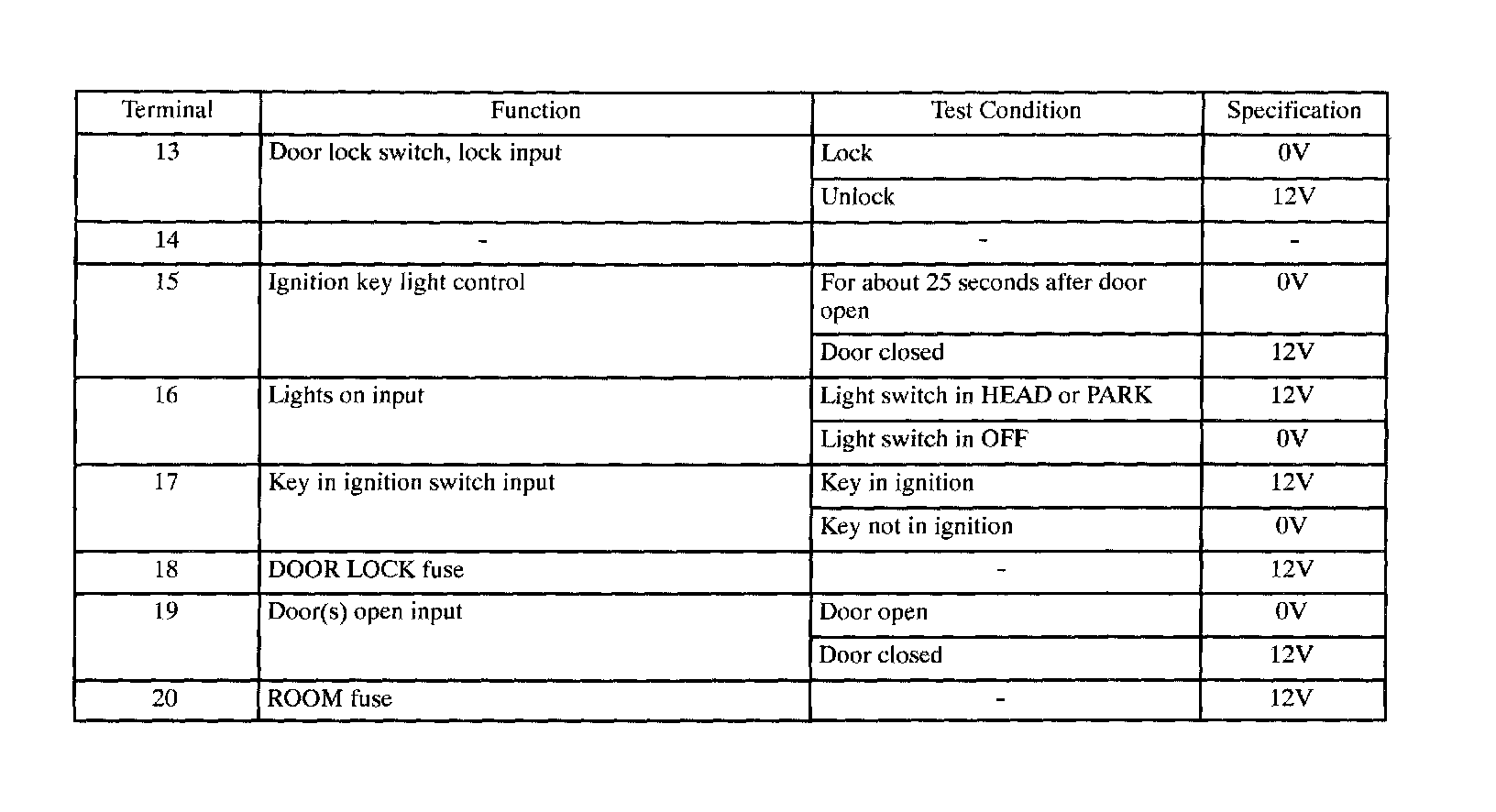

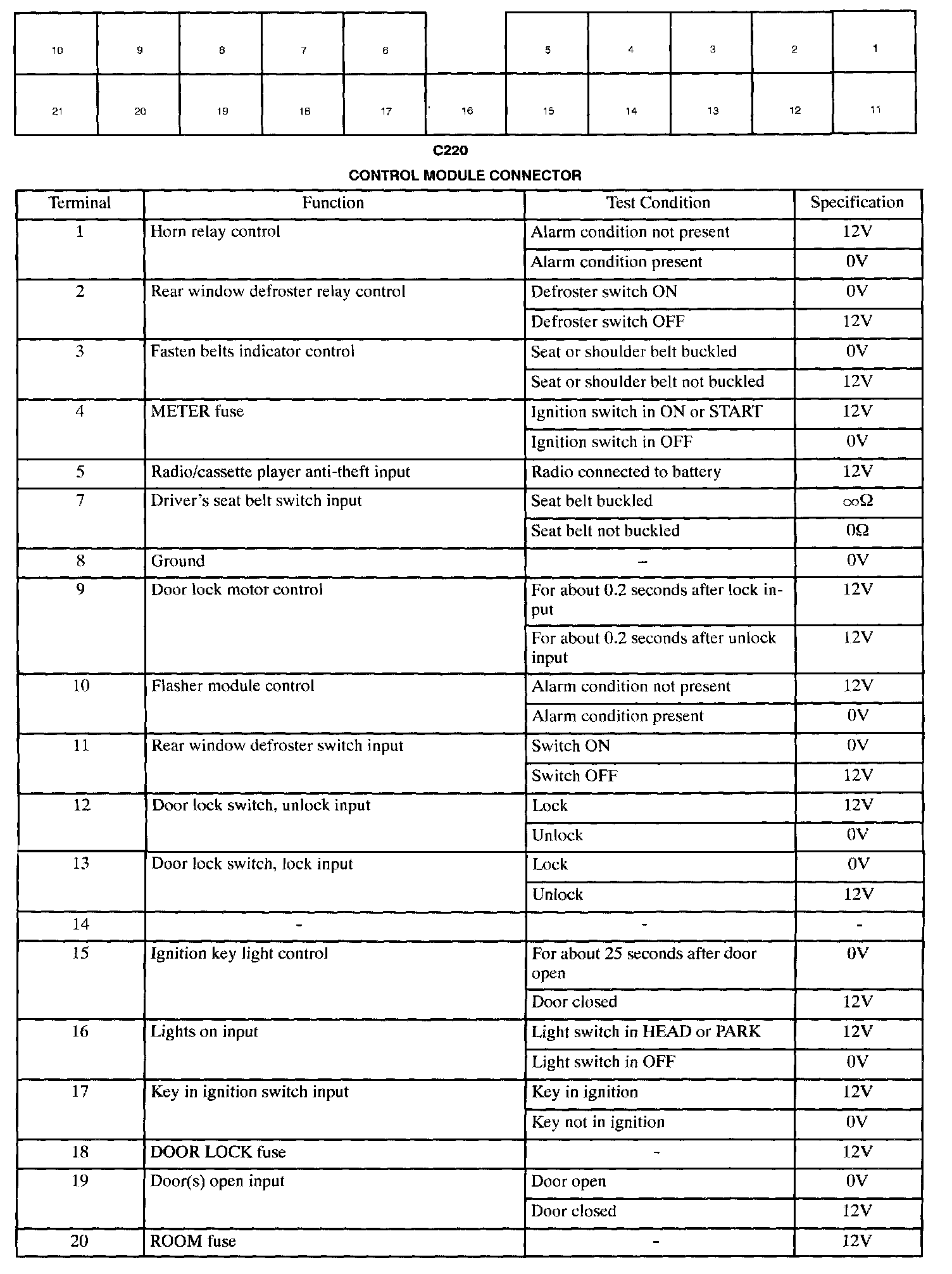

CIRCUIT TESTINGLocate the electronic time and alarm control module connector and check for voltage or continuity with connector connected. Repair or replace as necessary. Refer to Description and Operation for additional circuit information and diagnosis.
