Power Distribution

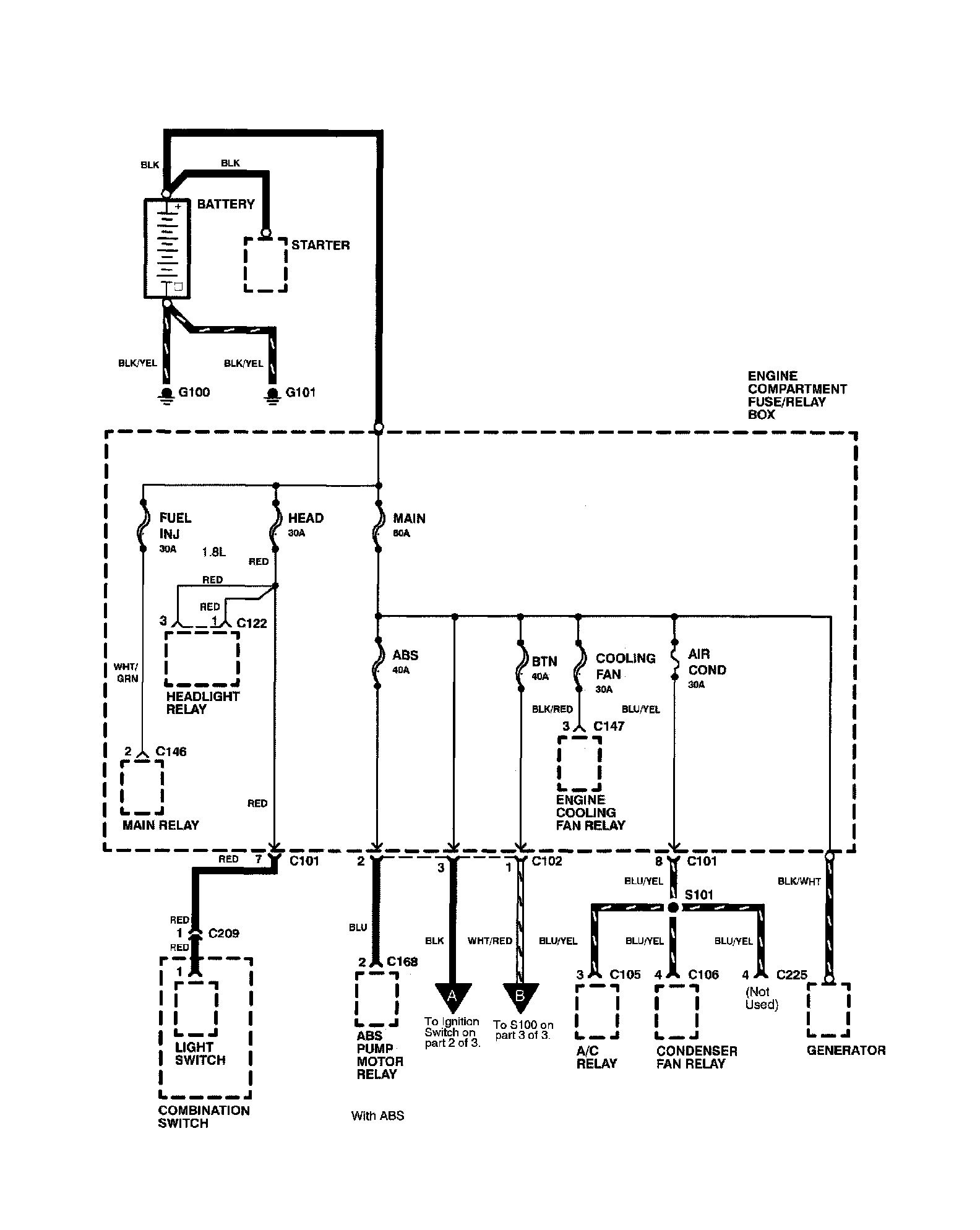

Power Distribution (Part 1 Of 3):




Power Distribution (Part 1 Of 3)
A/C Relay
ABS Pump Motor Relay
Battery
Condenser Fan Relay
Engine Cooling Fan Relay
Engine Compartment Fuse/Relay Box
Generator
Headlight Relay
Light Switch
Main Relay
Starter

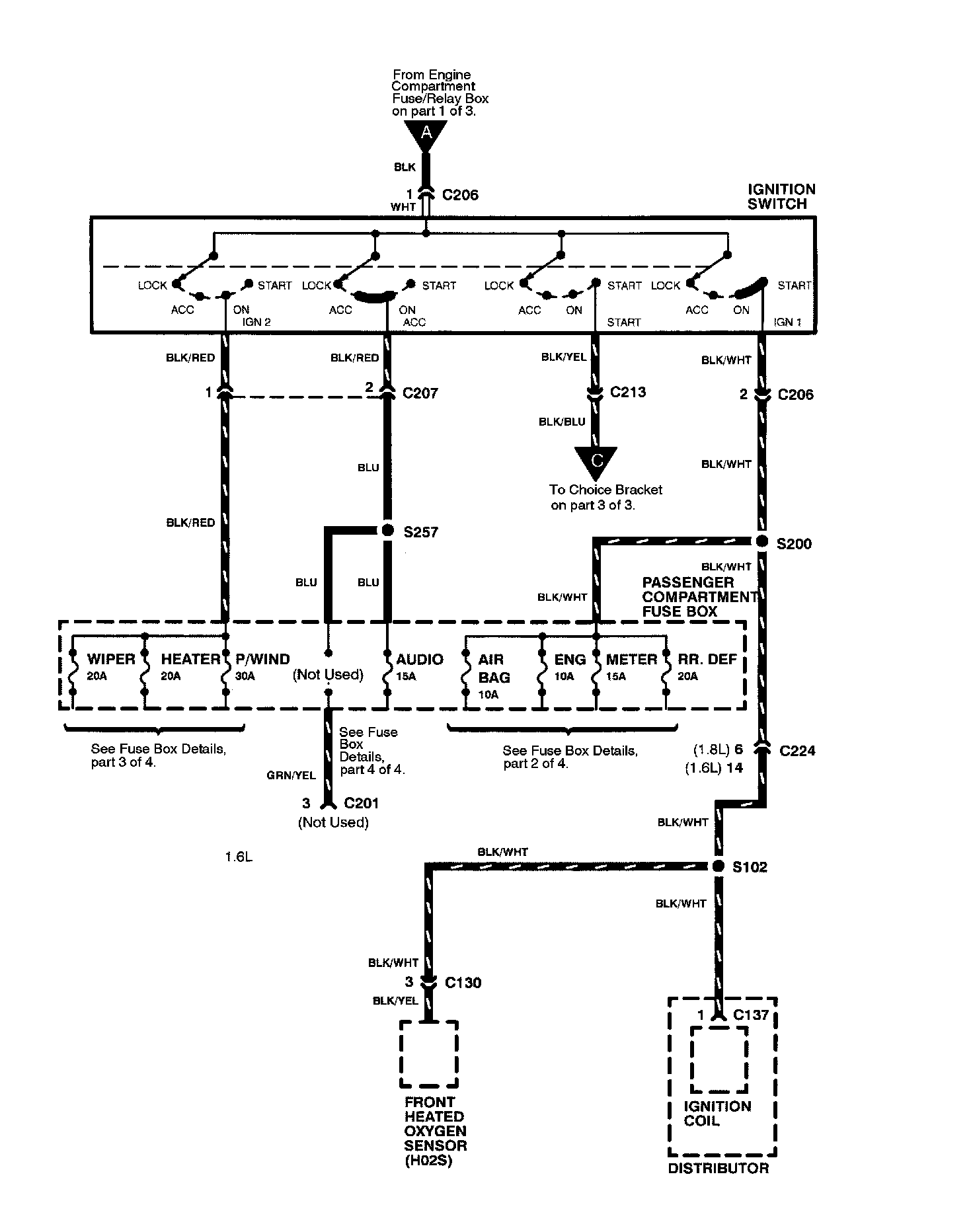

Power Distribution (Part 2 Of 3):




Power Distribution (Part 2 Of 3)
Front Heated Oxygen Sensor (HO2S)
Ignition Coil
Ignition Switch
Passenger Compartment Fuse Box

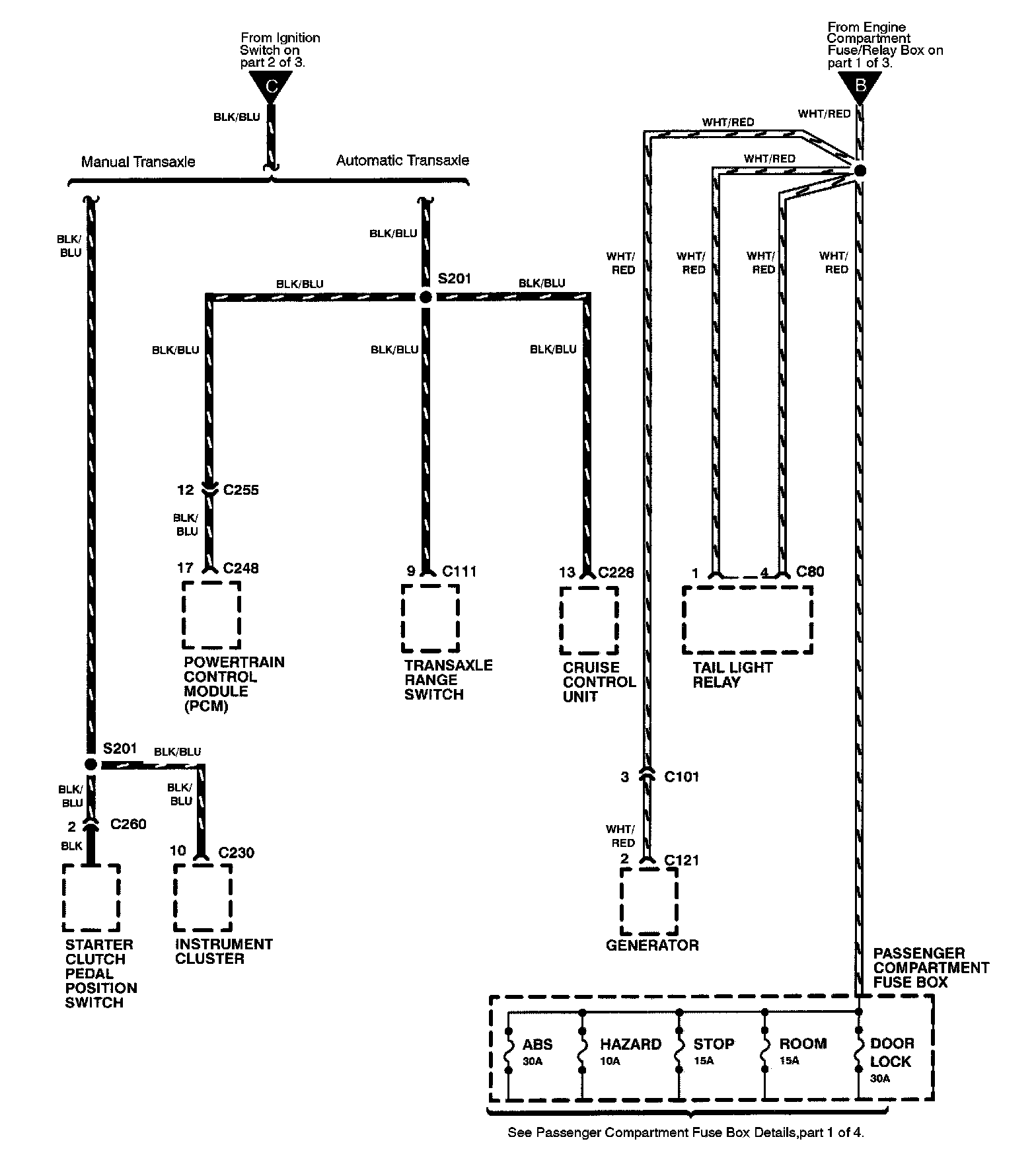

Power Distribution (Part 3 Of 3):




Power Distribution (Part 3 Of 3)
Cruise Control Unit
Instrument Cluster
Powertrain Control Module (PCM)
Passenger Compartment Fuse Box
Starter Clutch Pedal Position Switch
Taillight Relay
Transaxle Range Switch
