Rear Door Window Regulator: Service and Repair

Notice: There is no stand alone Rear Door Window Regulator article authored by the manufacturer. This information was extracted from the Rear Door Removal article.

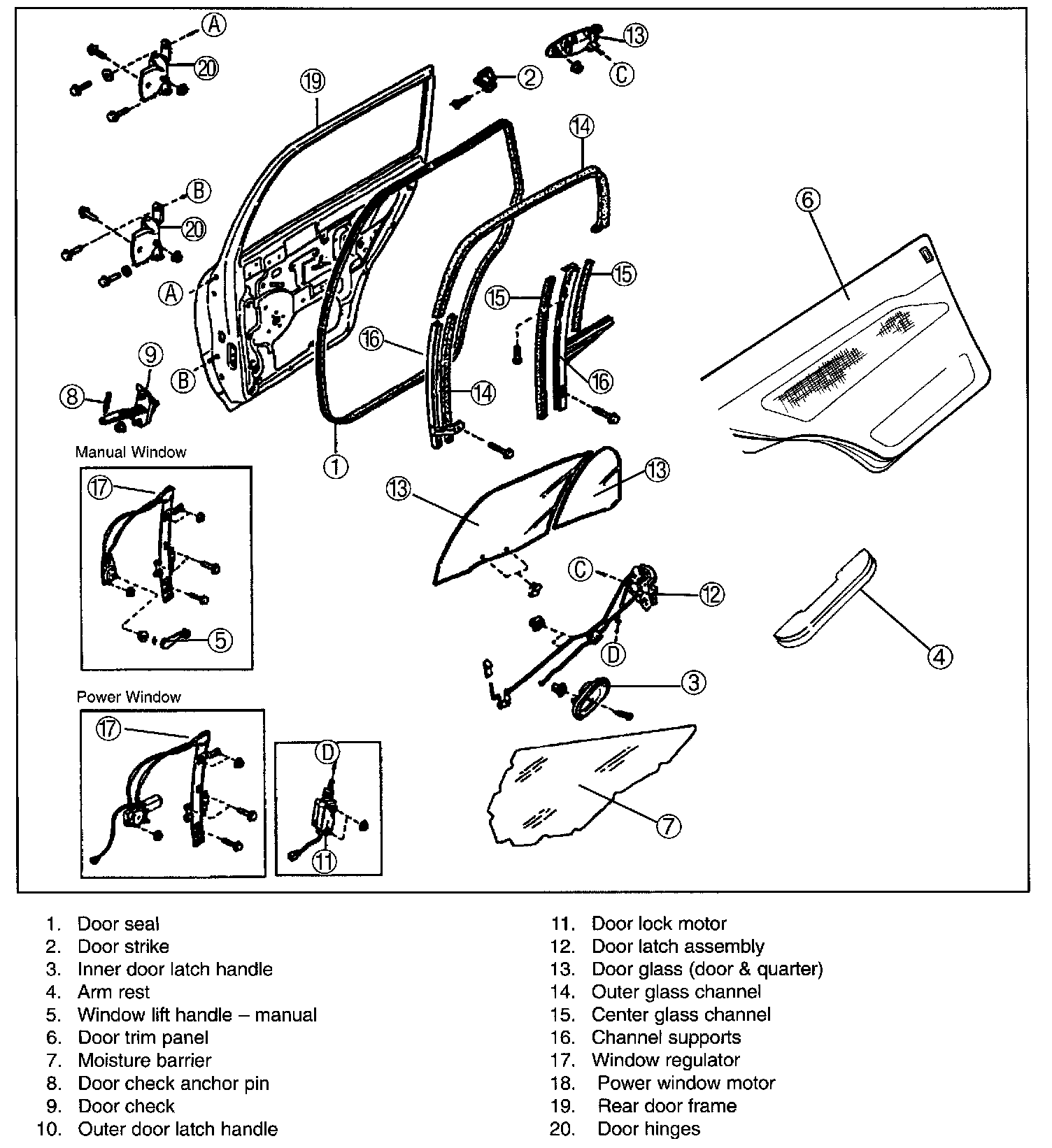

Rear Door Window Regulator Removal and Installation

1. Remove the inner door latch handle, door trim panel, etc.

2. Remove the window regulator and remove the latch actuator rod and the outer door handle installation nuts.

3. Installation is the reverse of removal.
