Idle Speed/Throttle Actuator - Electronic: Testing and Inspection
Inspection 1.
Verify that the
ignition switch is OFF.
2.

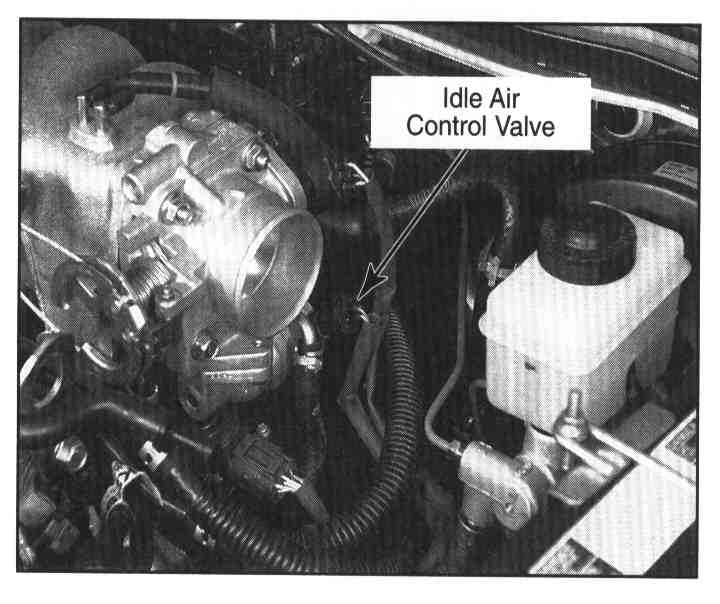

Disconnect the idle air control valve connector.
3.
Measure the resistance between terminals 1 and 2 of the idle air control valve.
Resistance: Approximately 10 ohms at 68° F (20° C) 4.
If not as specified, replace the IAC Valve.
