Harness Connector Views

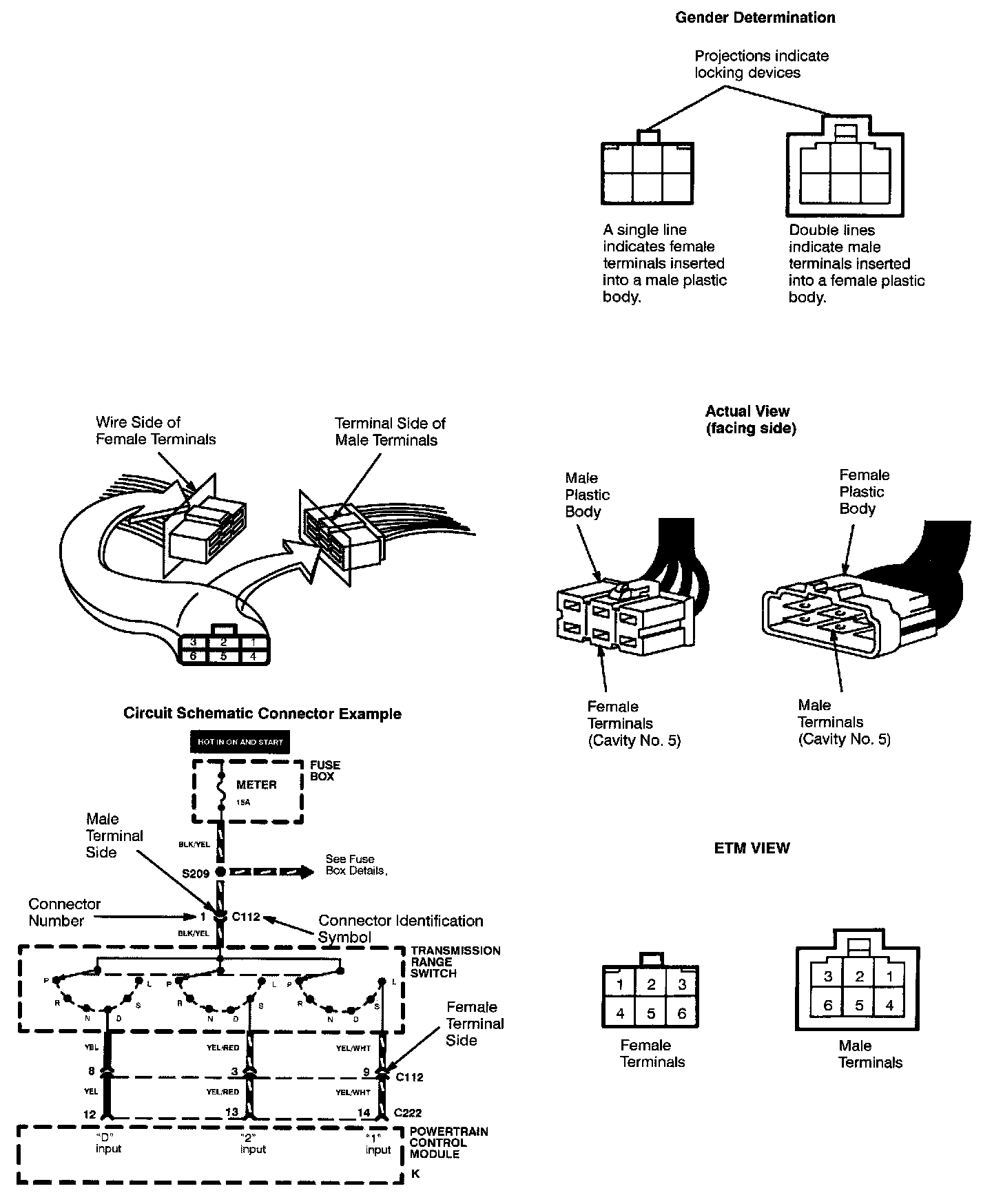

Harness connectors with two or more cavities are shown. In-line connector views (connectors between wire harnesses) are shown separated, with the male terminal side in double outline. Component connector(s) are shown disconnected from components.

To aid in troubleshooting, the number of the cavity shown corresponds to the number found next to the appropriate connector on the circuit schematic.

Connectors appear in ascending alphanumerical order.

The cavities (and wire terminals) in each connector are numbered starting from the upper right, looking at the male terminals from the terminal side (or looking at the female terminals from the wire side. Both views are in the same direction so the numbers are the same.) All actual cavities are numbered, even if they have no wire terminals in them.
